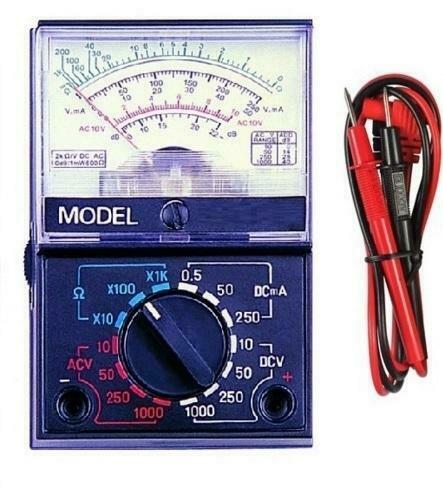

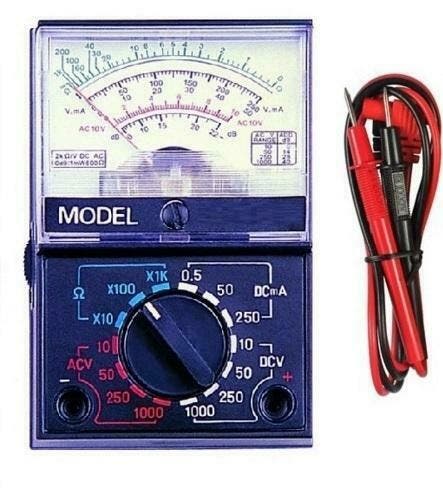

Compacte analoge multimeter

Analoge multimeter

Waarden:

• 0.1-0.5-2.5-10-50-250-1000v
• Accuracy at FSD : 3,(1000v;5)
• Sensitivity: 20kΩ/v
• Extension: 25kV (with HV probe extra)

AC VOLT

Waarden:

• 10-50-250-1000v
• Accuracy at FSD: 4;(1000v;5)
• Sensitivity: 9kΩ/v
• Decibelmeter: —10to +22DdB
• 0dB = 1mw/600Ω

DC CURRENT

Waarden:

• 50μA(at 0.1VDC position), 2.5mA,25mA,0.25A,*10A
• Accuracy at FSD:3 (10A;5)
• Volt Drop: 250mV

WEERSTAND:

Waarden:

• 1 ~ 0.2Ω up to 1kΩ, Midseale,at 20Ω
• 10~1Ω up to 10kΩ, Midseale,at 100Ω
• 100 X 100 ~ 10Ω up to 100kΩ ,Midseale, at 1kΩ
• 1k~200Ω up to 2MΩ,Midseale,at 20kΩ
• 10k ~2kΩ, up to 20MΩ Midseale,at 200kΩ
• Accuracy at FSD:3
• Iceo 150μA~15Ma~150Ma
• hFE 0 ~ 1000 (with connector extra)

Gewicht: 280g
