Heeft wat gebruiksporen maar verder in goede staat.

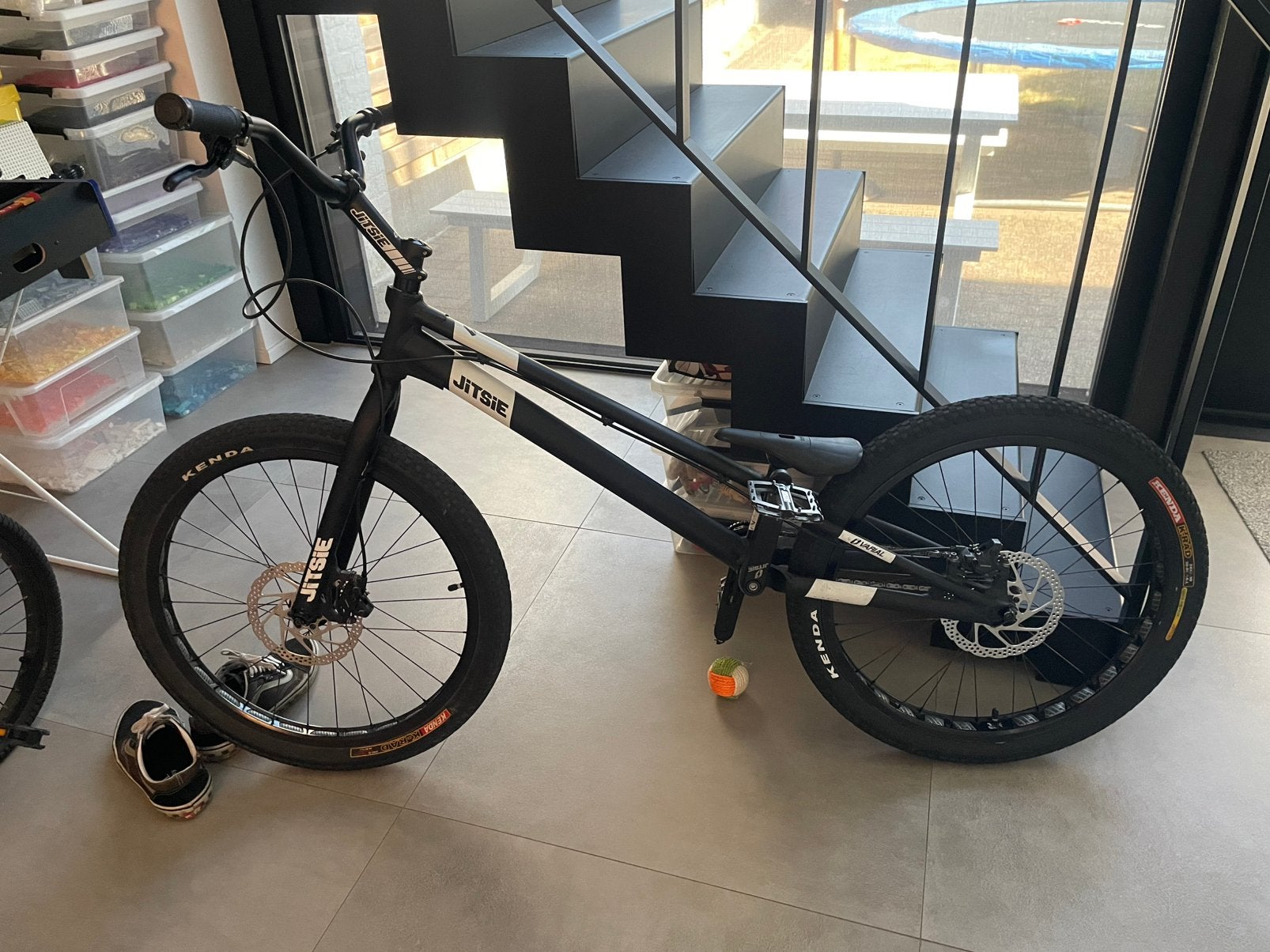

Jitsie Varial 24" Hybrid Bike
The Jitsie Varial Hybrid bike is Jitsie’s 24” bike developed for bike trials and Street trials! Its hybrid geo and functional design, with Jitsie saddle, make this a versatile bike, which you can ride in a trials and on the streets!

Check the part list of the Jitsie Varial 24” Hybrid bike below.
Frame and fork
- Frame: Jitsie Varial Hybrid 24”, made of 6061-T6 aluminium alloy,
- Forks: Jitsie Varial Hybrid 24”, with Post Mount disc brake mounts
Wheels
- Front hub: Jitsie D100 28 spoke holes, 100 mm spacing
- Rear hub: Jitsie D116, 32 spoke holes, 116 mm spacing
- Chain tensioner: Jitsie snail cams
- Front rim: Jitsie 24”, single wall, 32 mm wide, 28 spoke holes
- Rear rim: Jitsie 24”, single wall, 48 mm wide, 32 spoke holes
- Spokes: Jitsie 1.8mm stainless, with aluminium spoke nipples
- Rim tape: Jitsie
- Front tyre: Kenda K-Rad 24”x2.30”
- Rear tyre: Kenda K-Rad 24”x2.30”
Brakes
- Front brake: Shimano MT400 180 mm, +20 mm adapter
- Rear brake: Shimano MT400 180 mm, +20 mm adapter
Drivetrain
- Cranks: Jitsie ISIS 170mm
- Bottom Bracket: Jitsie ISIS 123mm
- Freewheel: Jitsie 108.9 18T, with 108 engagement points, 9 pawls and 18 teeth
- Chain: KMC Z610HX
- Rear sprocket: Jitsie 14T Screw-on
- Pedals: Jitsie platform 6061-T6 aluminium alloy
- Bashring: Jitsie bashring
Steering
- Headset: Jitsie Internal Tapered 1 1/8”, sealed bearings
- Stem: Jitsie 90 mm x 35º, 31.8 mm Oversized handlebar diameter
- Grips: Jitsie foam
- Handlebar: Jitsie Hybrid high-rise, 730 mm long, 100 mm rise

Geometry
(1) Wheelbase: 1045 mm
-----------------------------------------------
(2) Rear End: 370 mm
-----------------------------------------------
(3) Bottom Bracket Height: +50 mm.
-----------------------------------------------
(4) Head Angle: 71.5°.
----------------------------------
