Prijs : € 8. ( Merksem )

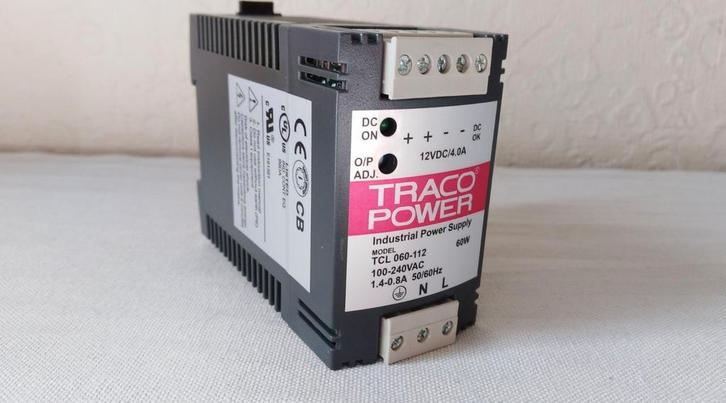

Traco Power DIN Rail Power Supply - Industrial power Supply

AC-DC Converter
Merk: TRACO Power

Ingang: 100-240 VAC
Uitgang: 12 VDC 4A

Omschrijving:
Geïsoleerde gelijkstroom-gelijkstroom-omvormers Product Type: DC/DC; Package Style: DIN-rail; Output Power (W): 60; Input Voltage: 18-75 VDC; Output 1 (Vdc): 12; Output 2 (Vdc): N/A; Output 3 (Vdc): N/A

The Traco Power TCL series DIN rail switch mode power supply has a universal input voltage rating ranging between 85VAC to 264VAC/85VDC to 375VDC with adjustable output voltage.
This power supply has an ultra-compact low profile plastic case with module depth of 100mm.
It fits with Snap-On mounting on DIN rails and detachable screw terminal block.
Its output current rating of 4A at 12VDC output voltage.

Kenmerk Waarde
AC or DC Input Voltage Ac, Dc
AC or DC Output Voltage Dc
Input Voltage 85 → 264V ac
Output Voltage 12 V dc
Output Current 4 A
Power Rating 48W
Number of Outputs 1
Electrical Phase 1
Type Switch Mode
Height 75mm
Width 45mm
Mounting Type DIN Rail Mount
Load Regulation ±1%
MTBF 2940000h
Minimum Temperature -10°C
Depth 100mm
Series TCL
Maximum Temperature +70°C
Ripple And Noise 50mV Pk-Pk
