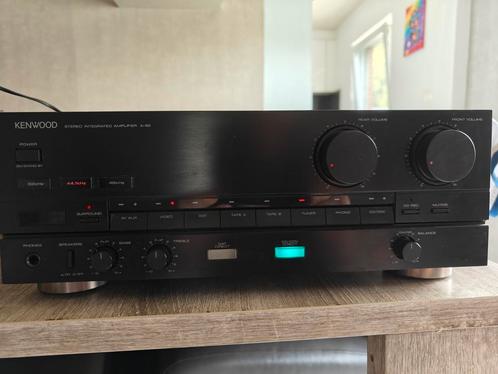

Kenwood A92 te koop

Kenwood A92 te koop, 1989, Made in Japan

Nazicht gekregen, buiten uitkuisen geen componenten vervangingen nodig. Omdat het apparaat, ondanks zijn leeftijd, niet veel gespeeld heeft.

Komt met RC 92 afstandsbediening.

Specificaties :

Manufacturer: Kenwood

Model: A-92, component of the overall system Kenwood M-92

Type: Surround integrated amplifier

Years of manufacture: 1988 - 1989

Made in: Japan

Colour: Black

Remote control: yes, system remote control RC-92

Power consumption:

Dimensions: 360 x 129 x 368 mm (WxHxD).

Weight: 8.5 kg

Original price Midi complete approx.: 2'298 DM (without equalizer, turntable, speakers)


Connections

Number of inputs:

Phone MM: 2.5 mV, 47 kOhm

CD: 150 mV, 47 kOhm

Tuner: 150 mV, 47 kOhm

AUX: 150 mV, 47 kOhm

Number of outputs:

Headphones:

1 pair of speakers


Technical Data

Continuous power in front (at distortion factor)

8 Ohm: 2x 75 W (RMS, 1 kHz)

4 Ohm: 2x 90 W (RMS, 1 kHz)

Continuous power rear (at distortion factor).

8 Ohm: 2x 8 W (RMS, 1 kHz)

4 Ohm:

Dynamic power

8 Ohm:

4 Ohm:

Total harmonic distortion: 0.09 % THD at 8 Ohm

Attenuation factor: 50 at 8 Ohm

Frequency response:

Phono MM: 20 - 20'000 Hz

High level: 10 - 70'000 Hz, ± 3 dB

Signal to noise ratio:

Phono MM: 70 dB

High level: 95 dB

Tone control

Bass: ± 10 dB at 100 Hz

Treble: ± 10 dB at 10 kHz
