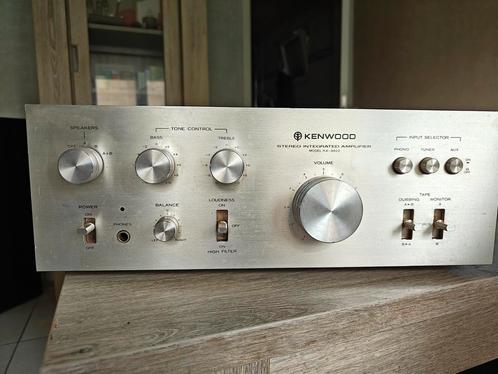

Kenwood KA 3500 te koop

Kenwood KA 3500 te koop, 1977

Made in Japan

Alle pot-meters gekuist, bias afgesteld en serieuze schoonmaak binnen in.

Specificaties :

Manufacturer: Kenwood

Model: KA-3500

Type: Integrated amplifier

Years of manufacture: 1975 - 1977

Made in: Japan

Color: Silver

Remote control: -

Power consumption: 280 W max.

Dimensions (WxHxD): 380 x 140 x 255 mm

Weight: 7.5 kg

Original price approx.: 160 US-$, 650 DM


Connections

Number of inputs:

Input sensitivity:

Phono MM: 2.5mV, 50 kOhm, 200 mV max.

Tuner: 150mV, 50 kOhm

AUX: 150mV, 50 kOhm

Tape Play A, B: 150mV, 50 kOhm

Number of outputs:

Outputs:

Tape Rec: 150mV, 100 Ohm

DIN: 30mV, 80 kOhm

Headphones:

Connectors for 2 pairs of speakers


Technical Data

Continuous power (at THD)

8 Ohm: 2x 40W (RMS, 20Hz...20Khz, 0.08% THD), 2x 40W (8 Ohm, 1Khz)

4 Ohm: 2x 45W

Dynamic power

8 Ohm:

4 Ohm: 170W

Total harmonic distortion: 0.2% THD at 8 Ohm

Attenuation factor: 50 at 8 Ohm

Frequency response: 10 - 40000 Hz

Signal-to-noise ratio:

Phono: 76dB (MM)

Tuner: 90dB

AUX: 90dB Tape Play: 90dB

Tone control

Bass: ± 8 dB at 100 Hz Treble: ± 8 dB at 10 kHz

Loudness: + 6 dB at 100 Hz, + 6 dB at 10 kHz

High Filter: + 6 dB/octave at 7 kHz

Attenuator:


Special Features

Mono / Stereo switch
