Overschot van project. Nieuw. 35% van de nieuwe prijs. 2 stuks beschikbaar

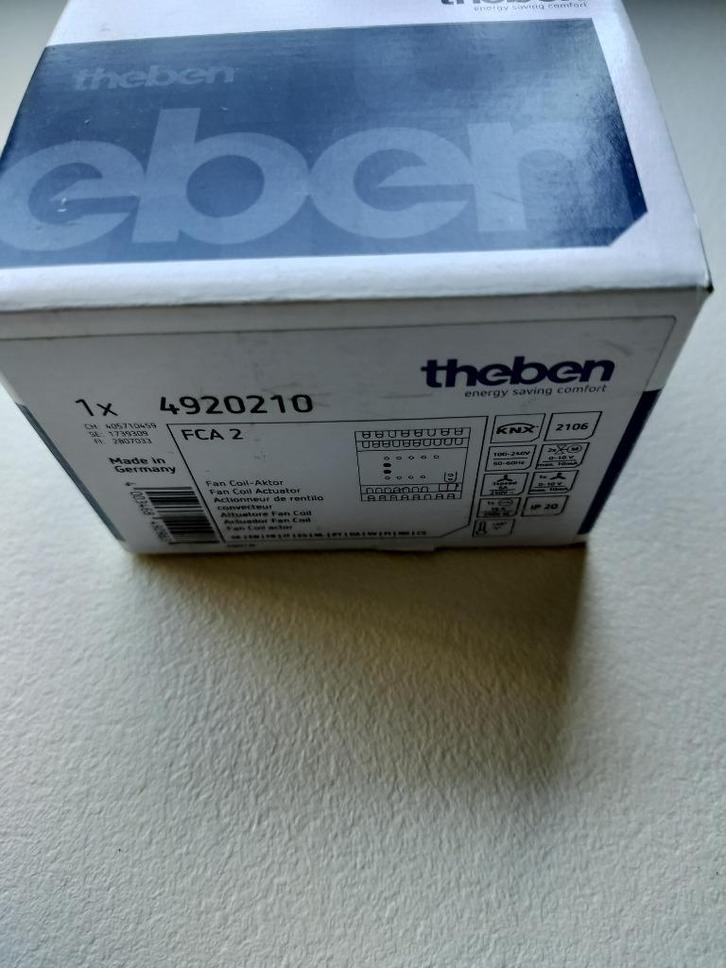

---- Theben 4920210 FCA 2
Fan Coil Aktor

Description
- Fan coil actuator
- For controlling fan coils
- For 2 and 4 pipe systems
- For up to three fan stages
- Optionally with 0-10 V fan control
- For proportional 0-10 V valves
- Additional relay for electrical heater or cooler bank
- Potential-free input for window contacts or temperature sensor
- Potential-free, condensation monitoring
- Display of operation status via 9 LEDs
- Manual operation on device (fan satges, switching between heating and
cooling)
- Adjustment of setpoint value for cooling in relation to external
temperature
- Potential-free switching contact for either cooler or heater bank
- With emergency program

Technical data
FCA 2 KNX
Operating voltage KNX Bus voltage, ≤8 mA
Operating voltage 100 V AC - 240 V AC, 50 Hz - 60 Hz
Frequency 50 - 60 Hz
Width 4 modules
Installation type DIN rail
Type of contact NO contact
FCA 2 KNX
Switching capacity additional relay 16 A
Switching capacity blower relay 6 A
Ambient temperature -5°C ... 45°C
Type of protection IP 20
Protection class II according to EN 60 730-1
