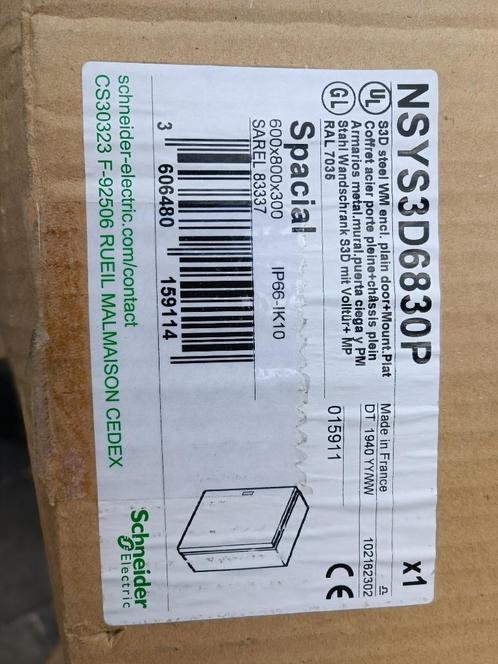

Electriciteitskast Schneider Spacial S3D NSYS3D6830P (800 B

ongebruikt

Spacial S3D plain door with mount.plate. H600xW800xD300.IP66 IK10 RAL7035.

Spacial S3D wall mounted steel enclosure with plain door. 600 x 800 x 300 mm. Single piece body, mounting plate included. 3-point closure system with handle and 3 mm double bar lock insert. Steel made, epoxy-polyester powder finish. Protection IP 66, IK10, Grey RAL 7035.
Specifications
Main
Range
Spacial
Product name
Spacial S3D
Application
Multi-purpose
Category
Compact enclosure
Enclosure nominal height
600 mm
Enclosure nominal width
800 mm
Enclosure nominal depth
300 mm
door type
Plain
Mounting plate description
Plain
type of gland plate
Standard
Installation accessory type
Wall-mounting
Device composition
1 body
1 mounting plate
1 door with lock
Complementary
body type
Single piece body
Gutter-shaped front rail double sheet thickness
Number of doors
Front face: 1 door(s)
Door opening side
Reversible (120 °)
Lock type
3 points lock, 3 mm double-bar
accessibility for operation
Front
Removable parts
Door by hinges
Cable gland plate by screws
Mounting plate by fixing element
Material
Enclosure: steel
Mounting plate: galvanised steel
Surface finish
Enclosure: epoxy-polyester powder
Colour
Enclosure: grey (RAL 7035)
Standards
IEC 62208
product certifications
UL
BV
LR
cUL
DNV
GL
Net weight
33 kg
Environment
NEMA degree of protection
NEMA 4X/13
IK degree of protection
IK10 conforming to IEC 62262
IP degree of protection
IP66 conforming to IEC 60529
