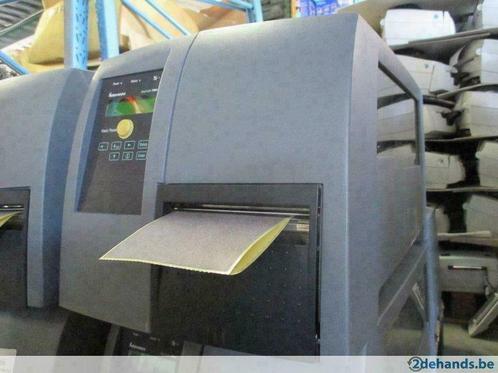

Intermec PM4I Direct Thermal Transfer Barcode Label Printer

Categorie

Computers en Software

Printers

Kenmerken

Conditie:Gebruikt

Beschrijving

Total printed: 94279 Inch

Prints 1 line



Interfaces: USB, Network RJ45, Serial DB9 RS232



Tested with self-test prints and works 100% OK



P/N: PM4C210000300020



203 DPI Printhead



Standard:
• Ethernet 10/100 Mbps
• RS-232, up to 115.2 kB/s
• Fingerprint/Direct Protocol: XON/XOFF, ENQ/ACK, DTR, RTS/CTS
• IPL: XON/XOFF, Intermec Std. Protocol
• USB 2.0

Supported Protocols:
TCP/IP-suite (TCP, UDP, ICMP, IGMP, etc.), LPR/LPD, FTP, BOOTP, DHCP, HTTP, SNMPv3, SMTP.SNMP-MIB II supported (over UDP/IP), private enterprise MIB included. Supports IPv4 and IPv6.

Memory
Standard:
16MB Flash memory, 32MB SDRAM, 1 Compact Flash slot

Print Specifications
Max Width:
104 mm (4.09 in) at 203 dpi
Max Length:
4095 mm (161.2 in) at 203 dpi
Max Label Width:
114.3 mm (4.5 in)
Thickness:
2.5 to 8.7 mil
Style:
Roll-fed or fanfold
Label Roll Max Diameter:
213 mm (8.38 in)
Label Roll Core:
38-76mm (1.5-3 in)
Resolution:
8 dots/mm (203 dpi)
Print Speed:
100 - 200 mm/s (4 - 8 ips) variable (203 dpi)
Media Type:
Direct thermal and thermal transfer label, ticket and tag printer. Also available with RFID.

Supported Bar Code Symbologies
1-Dimensional:
All major 1D symbologies are supported.
2-Dimensional:
All major 2D symbologies are supported.

Conditie: Gebruikt
Levering: Ophalen, Verzenden
