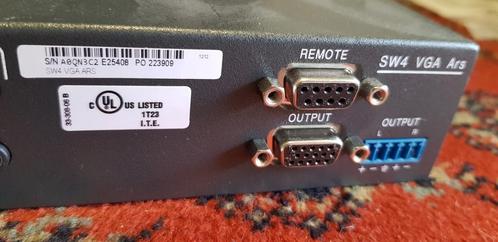

Extron SW4 VGA Ars Video switch

Zeer goede staat
Afhalen of verzenden voor 5 euro extra
Winkelprijs 250€

Gain: Unity
Bandwith: 350Mhz
Crosstalk: -68dB @ 10Mhz

VIDEO INPUT
Number/signal type: 4 VGA-UXGA RGBHV, RGBS, RGsB, RsGsBs computer video
Connectors: 4 15-pin HD female
Minimum/maximum levels: Analog–0.3V to 1.5V p-p with no offset
Impedance: 75 ohms
Horizontal frequency: 15 kHz to 145 kHz
Vertical frequency: 30 Hz to 170 Hz
Return loss: -42dB @ 5 MHz

VIDEO OUTPUT
Number/signal type: 1 VGA-UXGA RGBHV, RGBS, RGsB, RsGsBs computer video
Connectors: 1 15-pin HD female
Minimum/maximum levels: 0.3V to 1.5V p-p
Impedance: 75 ohms
Return loss: -43dB @ 5 MHz
DC offset: ±5mV maximum with input at 0 offset

SYNC
Input type: RGBHV, RGBS, RGsB, RsGsBs
Output type:  RGBHV, RGBS, RGsB, RsGsBs
Input level: 0.5V to 5.0V p-p
Output level: TTL: 5.0V p-p (unterminated)
Input impedance: High Z
Output impedance: 75 ohms
Max. propagation delay: 30 ns
Max. rise/fall time: 4.2 ns
Polarity: Positive or negative (follows input)

Audio
Gain: Unbalanced+6dB, balanced+12dB
Frequency response: 20 Hz to 20 kHz, ±0.05 dB
THD + Noise: 0.3% @ 1 kHz, 0.3% @ 20 kHz at rated maximum output drive
S/N:  >90dB at rated maximum output drive
Crosstalk:  <-65dB @ 20 kHz, <-80dB @ 1 kHz or below 60 Hz
Stereo channel separation: >80dB @ 20 Hz to 20 kHz
CMRR: >75dB @ 20 Hz to 20 kHz

General
Power: 100VAC to 250VAC, 50/60Hz, 10Watts, internal, auto-switchable
Rack mount: Yes, with optional 1U rack shalf
Enclosure type: Metal
Enclosure dimensions:: 4x4x22,2x24,1cm
Product weight: 0,5kg
