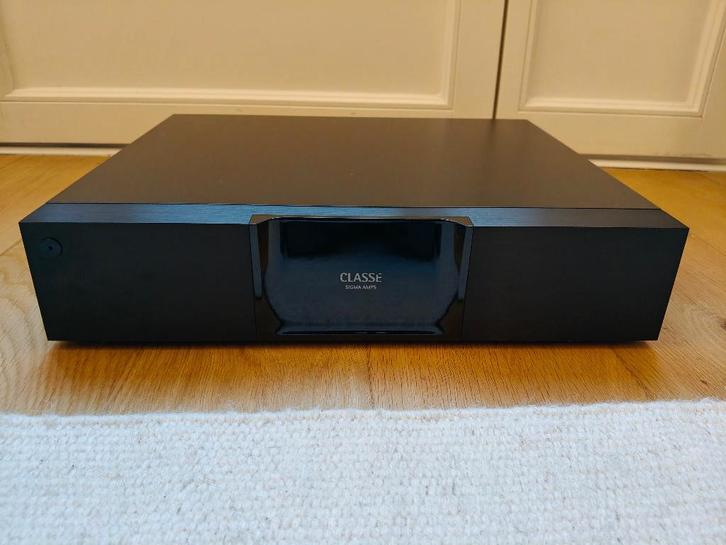

Classé Audio Sigma AMP5 5

Zeer positieve review in Stereophile zKrachtige en heldere klasse D versterker, eigen ontwerp van Classé Audio Canada. 5 x 200W in 8 Ohm, 5 x 400W in 4 Ohm. Zeer positieve review in Stereophile.
Nieuw 5000€.

In perfecte (nieuw)staat, in originele verpakking. Weg wegens verandering opstelling.

Ophalen te Brussel, verzending ook mogelijk op kosten/risico van koper.

The Sigma series AMP5 is a 200W/Ch five-channel amplifier derived from the AMP2, but with necessary part and layout changes to accommodate its five-channel architecture. Like the AMP2, it utilizes switching technologies for both power supply and amplification stages.

A Classé-designed switch mode power supply with Power Factor Correction makes over 1,000W of clean and stable power available while being both compact and efficient. A new class D amplifier topology provides wide dynamic range, smooth and extended frequency response and rich harmonic detail to yield stunning sonic performance. The efficiency of class D adds efficiency, low heat dissipation and relatively small size to the list of the AMP5’s attributes.

Specifications

Frequency response 10Hz - 20kHz, -1dB into 4Ω
Output power 200W rms into 8Ω All channels driven
400W rms into 4Ω Any two channels driven*
Harmonic Distortion 0.018% @ 1kHz All channelsdriven
to 1/8th power into 8Ω
Peak Output Voltage 113V peak to peak, 40V RMS no load
113V peak to peak, 40V RMS into 8Ω
Input Impedance 100kΩ Balanced / 50kΩ SE
Voltage gain 29 dB
Input level at clipping 1.4Vrms Balanced/SE
Intermodulation
Distortion >80 dB below fundamental into 8Ω SE
Signal to Noise Ratio -100 dB at peak output into 8Ω (AES17)
Rated power
consumption 200W @ 1/8th power into 8Ω
Mains voltage 100V - 240V, 50/60Hz
Overall Dimensions Width: 17.00" (433mm)
Depth (excluding connectors): 14.57" (370mm)
Height: 3.75" (95mm)
Net weight 23.1 lb (10.48 kg)
Shipping weight 30.0 lb (13.61 kg)
