Complete set. Totaalprijs nieuw ongeveer 1300€

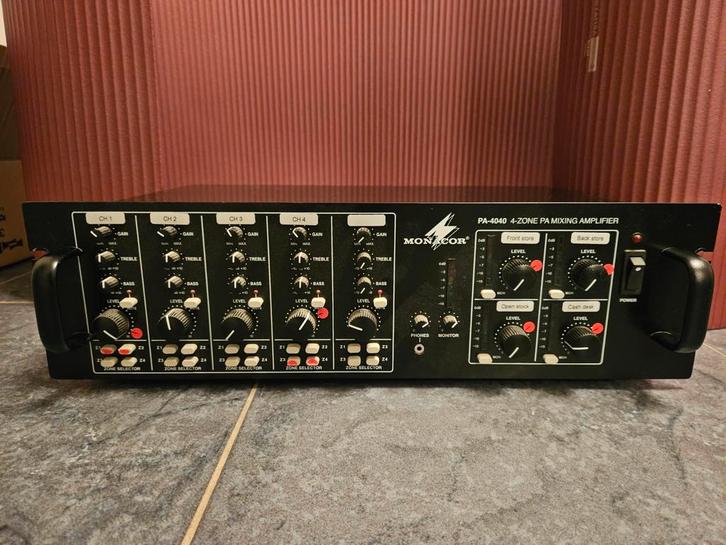

PA-4040
4-zone matrix mixing amplifier,

with professional features for general multi-room PA applications.


40 W per zone

100 V and 4/8 Ω operation

Perfect utilisation of the capacity and reliable protection of connected speakers due to an integrated limiter

3 inputs microphone/line via comb. jacks

2 inputs line stereo via RCA jacks

Each input channel with gain control, 2-way tone control, channel mute switch and routing switch for zones

Microphone inputs with +15 V phantom power, to be activated as required

Priority function for channel 1, switchable

Independent paging input, can be routed to all zones

4 zone outputs, can be controlled individually

Zone and monitor line outputs for additional amplifiers or recorders

Connection for monitor speakers

Level control via VU meters for zone and monitor

Adjustable headphone output

Temperature-controlled fan, continuously adjustable

230 V mains operation



Monacor img Stageline DMP-100 Compact MP3 Player Insertion Module
The DMP100 Compact MP3 Player Insertion Module is a compact MP3 player insertion module, with USB interface and SD/MMC card slot. A green backlit LCD screen provides makes it easy to operate this insertion module. The unit is supplied with a infrared remote control for ease of use.
Part no. 17.3510
Features:
USB storage media can be connected directlyFor SD/MMC cards (FAT16/FAT32), available at optionAutostart functionFast forward and reverseRepeat function (repeat 1, repeat all)Green backlit LCDSupplied with infrared remote controlFor use with img Stageline / Monacor systems
Technical Data:
General Information:Frequency range: 20-20,000HzTHD: < 0.2%Channel separation: > 60dBS/N ratio: > 75dBOutput, analog: 500mVOutput, analogue: 500mVPower supply: 12V DC current /100mAAdmiss. ambient temp.: 0-40 °CDimensions, player mech.: 120x22x58mmWeight: 48g


SA202 SoundTube Class AB Mini Amplifier

The SA202 amplifier is an ultra-compact, 2-channel amplifier with extra heat sink surfaces for extended duty at full power. Rated at 20 watts per channel output at 4 Ohms with max gain of 35 dB. Dual RCA, stereo mini jack, and high-level inputs. Power inputs include either three-pin Euroblock or barrel connector. 12-volt trigger for automatic on/off functions when source power is detected. Mounting hardware is included and adapts to pole, surface or security attachment installations.
Power per channel @ < 10 % THD: 20 watts (4 ohm stereo) 10 watts (8 ohm stereo
Power per channel @ < 1 % THD: 15 watts (4 ohm stereo) 8 watts (8 ohm stereo)
