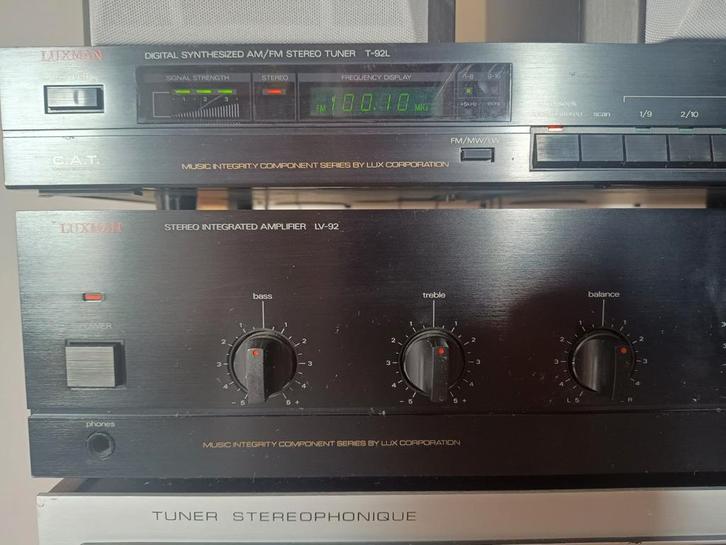

Luxman versterker en tuner 92

Luxman versterker en tuner 92

EIGEN fotos volgen

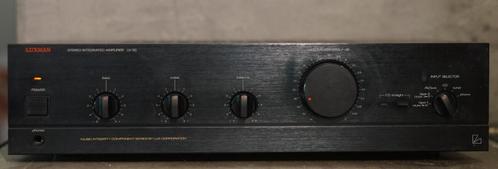

LV-92
T-92L

versterker

• Manufacturer: Luxman
• Model: LV-92
• Type: Integrated amplifier
• Years of manufacture: 1988 - 1991
• Made in: Korea
• Color: Black
• Power consumption:
• Dimensions: 438 x 110 x 278 mm (WxHxD).
• Weight: 6 kg
• Original price approx.: 448 DM (1990)

Connections

• Number of inputs: 6 (Cinch)

Phono MM: 2.5 mV / 50 kOhm CD: 150 mV / 40 kOhm

• Tuner: 150 mV / 40 kOhm

AV/Aux: 150 mV / 40 kOhm DAT/Tape: 150 mV / 40 kOhm

• Number of outputs: 2 (Cinch)

DAT/Tape Rec Out:

• Headphones
• 1 pair of speakers

Tuner
AM FM LW
stereo
presets

Type: Mono/Stereo Tuner

Tuning Bands: FM, MW, LW

Tuning Scale: Digital

FM Tuning Range: 87.5 to 108 MHz

MW Tuning Range: 522 to 1611 kHz

LW Tuning Range: 153 to 279 kHz

Sensitivity: 0.95uV (FM)

Signal to Noise Ratio: 70dB (FM), 50dB (MW), 50dB (LW)

Distortion: 0.25% (FM), 0.4% (MW), 0.7% (LW)

Selectivity: 62dB (FM)

Frequency response: 30Hz to 15kHz (FM)

Output: 700mV (FM), 210mV (MW), 210mV (LW)

Dimensions: 438 x 60 x 220mm

Weight: 2.5kg
