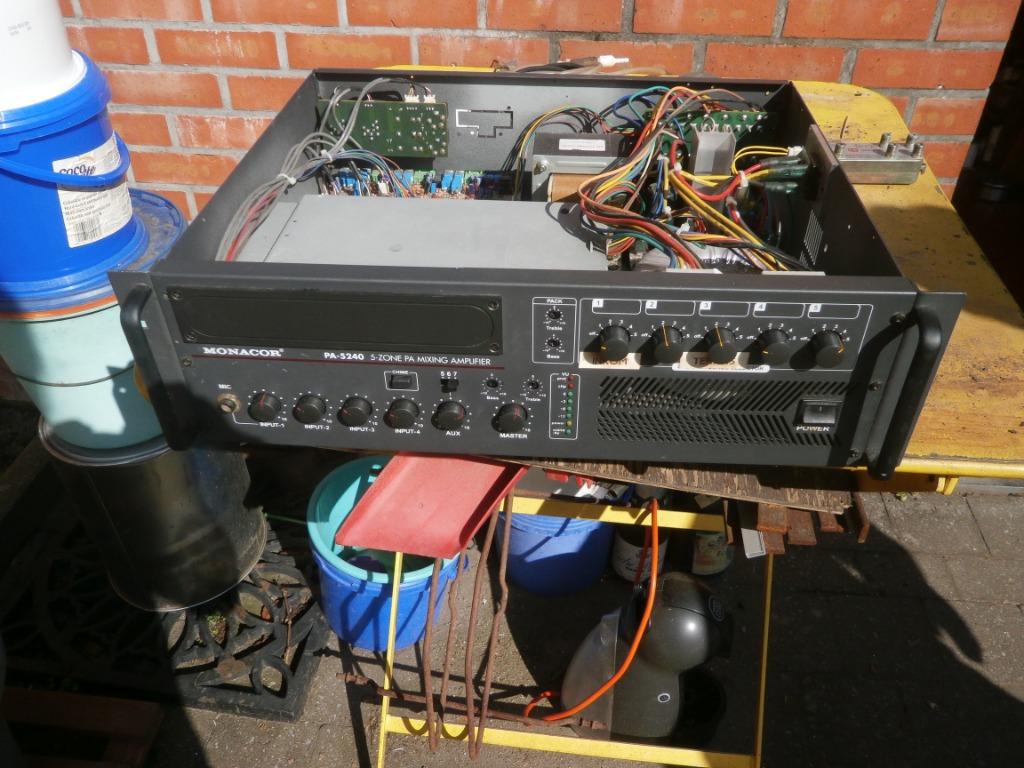

versterker monacor PA-5240

monacor PA-5240 , Technical specifications PA-5240PA-5240Peak output power340 WPower rating240 WPower rating at 8 Ω240 WPower rating at 100 V240 WChannels5Zones5Inputs2.5 mV/2 kΩ (mic 1),2.5 mV/2 kΩ, 0.3 V/200 kΩ (mic/line 2-4),
0.3 V/5 kΩ (line 5-7),
0.775 V/10 kΩ (preamplifier)
Frequency range55-16,000 HzEqualizer bass± 10 dB/100 HzEqualizer treble± 10 dB/10 kHzS/N ratio> 70 dB (mic),> 80 dB (line)
THD< 1%Phantom power18 VPower supply˜ 230 V/50 Hz/750 VA,DC 24 V/20 A
Mains voltage~ 230 VMains frequency50 HzPower consumption, operation750 VAOperating voltage (possible alternative)DC 24 VPower supply (possible alternative)DC 20 AAdmiss. ambient temp.0-40 °CWidth482 mmHeight133 mmDepth352 mmRack units, RU3Weight16 kgConnections2 x 6.3 mm jack (mic),1 x combo 6.3 mm/XLR (mic/line),
3 x RCA L/R (line),
3 x plug-in terminals (line),
1 x 6.3 mm jack (preamplifier input),
screw contacts (push-to-talk mic),
screw contacts (zone paging mic),
1 x 6.3 mm jack (preamplifier output),
screw contacts (chime button),
screw contacts (speakers)
Packaging dimensions (W x H x L)0.54 x 0.21 x 0.48 mGross weight18.32 kgNet weight16.38 kg , bovenste deksel ontbreekt , 0478/700556
