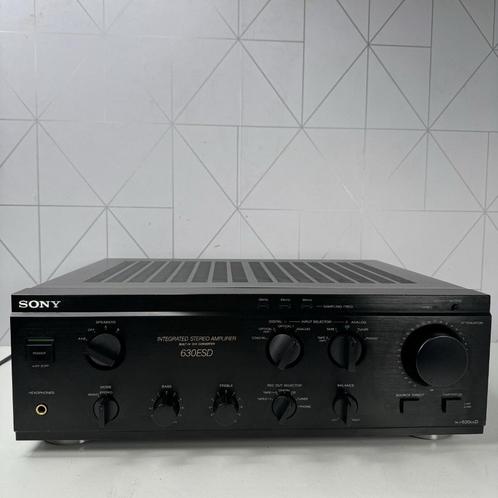

SONY TA-F630ESD Integrated Stereo Amplifier HiFi

Manufacturer: Sony
Model: TA-F 630 ESD
Type: Integrated amplifier
Years of manufacture: 1989 - 1991
Made in: Japan
Color: Black
Remote control: No
Power consumption: 220 W
Dimensions: 430 x 150 x 390 mm (WxHxD)
Weight: 13.7 kg
Original price approx.: 999 DM

Connections

Number of inputs:
4x Line In (150mV,50KOhm), 1x Phono MM/MC (2,5mV,50KOhm / 0,17mV,100Ohm), 2x Optical, 1x Coaxial.
Number of outputs:
2x Rec Out (150mV,1kOhm), 1x Optical

Technical Data

Continuous power (at distortion factor)
8 Ohm: 2 x 80W at 0,004%
4 Ohm: 2 x 100W at 0,008%
Dynamic power
8 Ohm: 2 x 120W
4 Ohm: 2 x 160W
Total harmonic distortion: 0.003% at 10W into 8 Ohm

Attenuation factor: 50
Frequency response: 2Hz - 200kHz
Signal-to-noise ratio:
Stereo channel separation:
Tone control: yes
Bass: at 100Hz +-6db treble: at 10 kHz +-6db

Loudness: no
High Filter: no
Low Filter (Subsonic):
Mute: yes, -20db
Direct/Line-Straight: yes

Special Features

DA/AD converter 2x optical in, 1x coaxial in, 1x optical out
