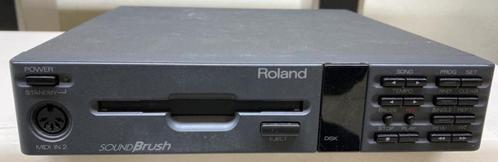

ROLAND SoundBrush SB-55 kompleet

met afstandsbediening, originele adapter en handleiding.

Roland SB-55 Technical Specifications
Article #1705771 Added on Mar 20, 2012 at 3:11 PM
SB-55 SOUND BRUSH

NUMBER OF TRACKS:
Format 0: 1 (16 Channels)
Format 1: 17 (16 Channels per track)

TIME BASE: (During Recording)
192, 240

DATA FORMAT:
Playback: Standard MIDI File (Format 0 or 1)
Recording: Standard MIDI File (Format 0)

TEMPO:
5-260 Beat per Minute

TIME SIGNATURE: (When Recording)
4 / 4

MAXIMUM SIMULTANEOUS INPUT NOTES: (When Recording)
Unlimited

MAXIMUM SIMULTANEOUS OUPUT NOTES: (Durring Playback)
Unlimited (per track)

DISK DRIVE:
3.5 inch ; 2DD micro floppy disks only

DISPLAY:
LED (3 – Character)

TERMINALS:
MIDI Connectors (IN x 2, OUT, THRU)
Play / Stop jack

POWER SUPPLY:
DC 9V (AC Adaptor)

POWER CONSUMPTION:
900 mA

DIMENSIONS:
218 (W) x 233 (D) x 44 (H) mm
8 – 9 / 16 (W) x 9 – 3 / 16 (D) x 1 – 3 / 4 (H) inches
Half – Rack Size

WEIGHT:
1.7 kg / 3.7 lbs

REMOTE CONTROL UNIT

OPERATING RANGE:
Distance: approximately 5m
Angle: 40 Degrees

POWER SUPPLY:
DC 3V (CR 2025 lithium battery)

DIMENSIONS:
54 (W) x 4.9 (D) x 85.5 (H) mm
2 – 1 / 8 (W) x 3 / 16 (D) x 3 – 3 / 8 (H) inches

DISK:
Disk Capacity (Formated) . . . . . . . . . . . . . . . . . . . 720 Kbytes
Maximum number of songs (Standard MIDI Files) . . . . 99 Songs
Maximum number of notes . . . . . . . . . approximately 90,000 notes

INCLUDED ITEMS
Owner?s Manual
Remote Control Unit
Lithium Battery (CR2025)
Demo Disk
MIDI Cable (1 m) x 1

• The included MIDI cable is for MIDI only. It cannot be

used for other purposes.

OPTIONAL ITEMS:
Rack Mount Adaptor (RAD-50)
