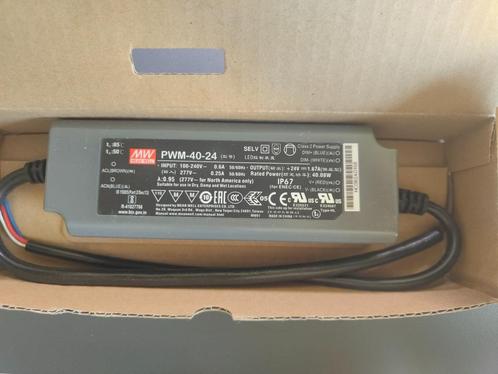

5 stuks NIEUW van MW Mean Well PWM-40-24 LED-transformator Constante spanning 40.08 W 0 - 1.67 A 24 V/DC Dimbaar, PFC-schakeling, Overbela

Mogen weg voor 20 euro per stuk.

Kan ook verzonden worden maar de verzendkosten zijn voor de koper (8 euro). Zie hiervoor zeker mijn uiterst positieve feedback.

tags: MW Mean Well PWM 40 24 LED transformator driver LED





Highlights & Details
Schakelnetvoeding Uitgang / instelbaar vermogen Actieve PFC Beschermingsklasse IP20 Geschikt voor het inbouwen in meubels
The Mean Well PWM-40 Series is a range of 40W LED Drivers with a built-in 3 in 1 dimming function and transmitting PWM style output, adapting to all kinds of LED strips and ensuring that colour temperature and brightness is maintained consistent. The PWM-40 LED drivers have a high efficiency of up to 90% and a low no load power consumption below 0. 5W. These LED power supplies are waterproof, with the case made of 94V-0 flame retardant plastic. The interior of the PWM-40 is fully potted in silicone, making these LED drivers suited to meet the anti-vibration demand up to 5G and enhancing the heat dissipation. The PWM-40 LED drivers are IP67 rated and can be used in highly dusty and humid harsh environment. The class II design and the double insulation weather resistant cable makes the PWM-40 Led drivers ideal for flexible installation in applications like LED strip lighting, indoor LED lighting, LED decorative lighting and LED architecture lighting.
Universal AC input
Built in active PFC function
Constant Voltage PWM style output
Built-in 3 in 1 dimming function
High efficiency of up to 90%
Short circuit, over load, over voltage and over temperature protection
Fully encapsulated IP67 rated
Class II power unit, no FG pin
Operating temperature -40°C to +70°C
Suitable for dry, damp, wet locations
No load power consumption below 0.5W
StandardsUL8750, CSA C22.2 No.250.13, ENEC EN61347-1, EN61347-2-13, EN62384 independent, IP67, design refer to EN60335-1ApprovalsSELV, cUL, UL, CB, CE
