Kenmerken

Conditie
Gebruikt
Merk
ruckus

Beschrijving

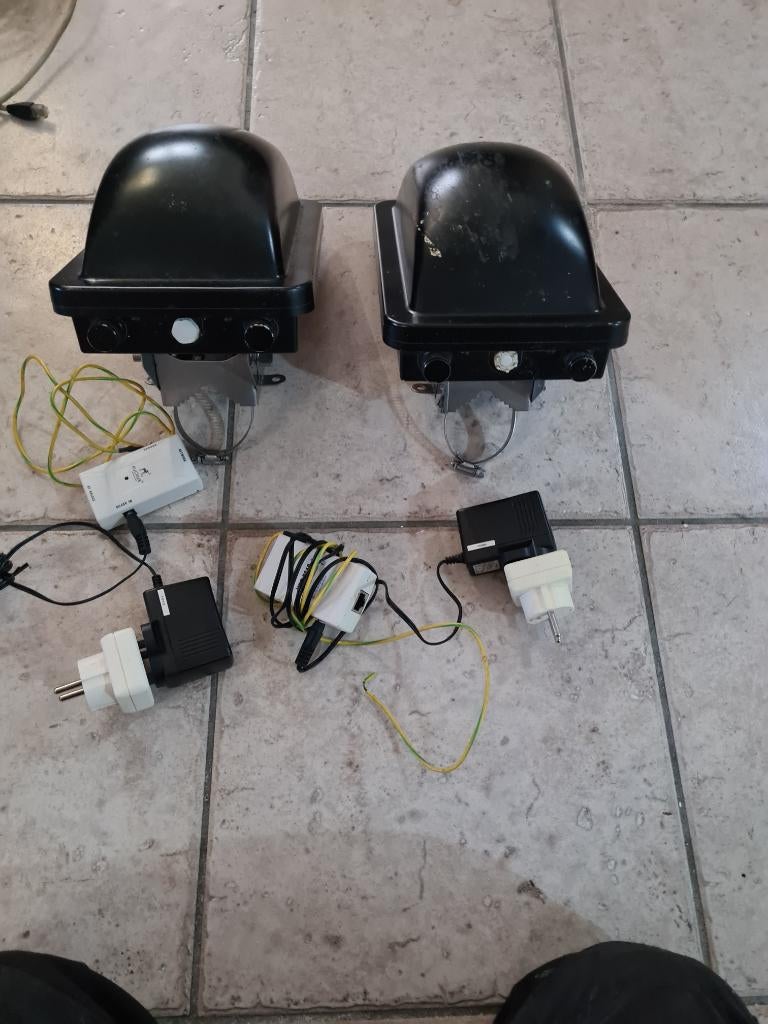

Een set Ruckus ZoneFlex 7731 professionele outdoor WiFi bridge / antenne
Deze is gebruikt om een snelle (internet) verbinding in het buitengebied op te zetten. Haalde stabiel 100+ Mbps over een afstand van ca. 4 km!
Zeer geschikt om je internetverbinding te delen met iemand of als je b.v. een camping of bedrijf hebt en je wilt internet op een afgelegen deel van je camping of bedrijf krijgen. Of als je gewoon internet in je schuur wilt:)
Maximaal 10 tot 15 km bereik. Line-of-sight is wel nodig; de ontvangers moeten elkaar kunnen zien, evt vanaf een buis / paal op hoogte.

De link is naar de opvolger, de P300 (die is sneller, al is het verschil minimaal op lange afstand en veel internet verbindingen zijn nog trager waardoor meer snelheid niet echt nodig is).

In goede staat. Origineel zijn ze wit, deze zijn zwart zodat ze wat minder opvallen aan het huis. De vlekken zijn van vogelpoep:)
Ze komen compleet incl. voedingen en POE power injectors.
Intussen is hier glasvezel in het buitengebied aangelegd en daardoor zijn ze nu overbodig.

Zoek evt reviews voor meer info.

Hieronder nog wat meer info van internet:

Long-Range, Reliable 802.11n Wi-Fi Backhaul for High-Speed Point-to-Point / Point to Multi-Point (9.0 os) Connectivity
Developed for broadband operators looking to deliver reliable wireless broadband services, the ZoneFlex 7731 is the first smart Wi-Fi point-to-point backhaul system that delivers consistent performance at ranges up to 15 kilometers. Based on the 802.11n standard combined with a Ruckus smart directional antenna, the ZoneFlex 7731 supports up to 190 Mbps at 1.5 kilometers, and offers performance up to 50 Mbps at 10 km (LoS). Operating in the 5GHz band, the ZoneFlex 7731 integrates a state-of-the-art, dual-polarized smart antenna that offers blazingly fast and highly reliability connectivity across long distances.

The ZoneFlex 7731 point-to-point bridge is perfect for a variety of carrier applications such as offering Wi-Fi broadband services, backhauling 3G traffic and offloading data traffic from 3G networks. It is also ideal for hotels, multi-dwelling units, schools, warehouses and other enterprises looking to extend broadband connection to remote buildings where fixed line broadband connections arent feasible or cost effective. Ultra simple to use, the lightweight ZoneFlex 7731 provides a 30-degree 3dB beamwidth antenna for easy aiming and is centrally managed through the Ruckus FlexMaster remote Wi-Fi management system.

Wire-like, long range throughput

Integration, dual-polarized directional smart antenna
802.11n, operating in the 5GHz band
Up to 190 Mbps at 1.5 km/1 mi
Up to 165 Mbps at 3 km/2 mi
Up to 100 Mbps at 5 km/3 mi
Up to 50 Mbps at 10 km/6 mi
15km maximum range
Easy installation and pairing

No external antennas
Lightweight design (877 grams / 1.93 lbs.)
Flexible mounting options
Finds peer automatically
Secure and scalable

AES-based, the wireless bridge link is secure and can scale to support multiple networks segmented by VLANs
Robust operation

IP-65 rated
Operates in conditions from -40C 65C (-40F 149F)
802.3af power over Ethernet support
Internal 14dBi directional antenna
Ultra simple positioning and aiming

Liberal 30-degree, 3dB beam width antenna
Sophisticated LED-based aiming software
...
...
...
...
...
...
...
...
...
...
...
...
