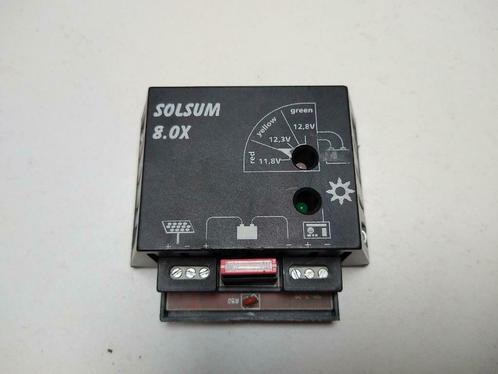

Steca SOLSUM 8.0X Laadcontroler 12/24V

Kenmerken:
Safety Features:
• Overvoltage protection by integrated varistor
• Wrong polarity protection at Battery and Module
• Proof against operation errors
• Built-in fuse
• Electronically short circuit protected
• Voltage-display by changing colour
red 11,8 V
yellow to red-yellow 12,3 V
green 12,8 V

Charging Functions:
• Shunt regulator - fast and gentle charging
• Time-delayed overdischarge protection
• Temperature compensation by built-in sensor
• Automatic voltage adaption
• Cycle charging
• Boost charging
• Schottky diode
• MOSFET switch
• LED- display of charging function

Technical Specifications Solsum 8.0:
Max.Charge Current at 50° C: 8 A
Load Current at 50° C: 8 A
Connection Terminal (fine/single wire): 2,5 mm"
Weight: 110 g
Protection: IP 22
Dimensions: 85x98x34 mm
Ambient Temperature: -25° C bis 50° C
System Voltage: 12/24 V

In goede werkende staat.
De foto's maken deel uit van de beschrijving.
Af te halen in Sint-Niklaas of omgeving Gent of verzending tegen kostprijs.
