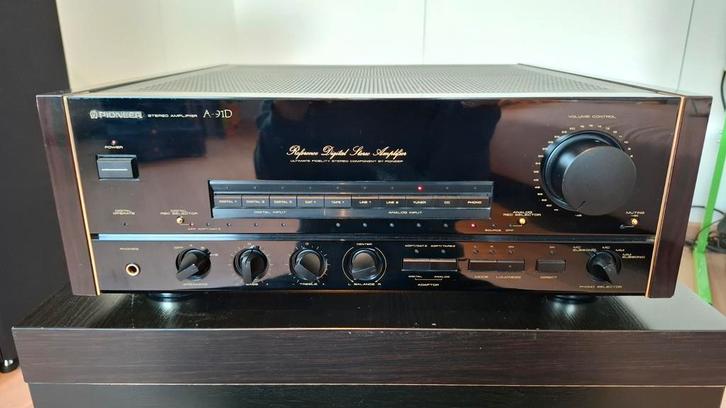

Pioneer A- 91 D geintegreerde versterker - urushi

Werkt perfect. in mooie staat, enkel het typenummer op het front is minder duidelijk.
Prachtige versterker uit de unieke Urushi pianolak serie. Weegt 30 kg!!

General
Manufacturer: Pioneer
Model: A-91 D
Model range: Urushi series
Type: Integrated amplifier
Years of manufacture: 1987 - 1991
Made in: Japan
Color: Black, wooden sides
Power consumption: 1,000 W
Dimensions: 457 x 173 x 457 mm (WxHxD)
Weight: 29.2 kg
Original price approx.: 2'500 DM

Connections
Number of inputs:

1x Phono (Cinch): 2.5 mV / 50 kOhm (MM), 0.2 mV / 100 Ohm (MC).
CD, Tuner, Line1, Line2, 2x Tape In (Cinch): 150 mV / 50 kOhm
DAT1, ADTP/DAT2, Digital 1, 2, 3
Digital inputs: Coaxial and optical

Number of outputs:
3x Tape Out (Cinch): 150 mV / 2.2 kOhm
Digital outputs: Coaxial and optical
Headphones (6.3mm jack)
2 pairs of loudspeakers

Technical Data
Continuous power (at distortion factor)
8 Ohm: 120 W (0.003%)
6 Ohm: 140 W (0.003%)
4 Ohm: 150 W (0.008%)

Dynamic power
8 Ohm: 150 W
4 Ohm: 170 W

Total harmonic distortion: 0.003 %
Attenuation factor: 200 / 70 (8 Ohm, 1 kHz / 20 Hz - 20 kHz)
Frequency response: 5 - 80,000 Hz (0.05%, 8 Ohm)
Signal-to-noise ratio:
Stereo channel separation:
Tone control:

Bass: yes, ±8db (100 Hz).
Treble: yes, ±8db (10 kHz)
Loudness: yes, + 5 dB (100 Hz) / + 3 dB (10 kHz)High Filter: yesLow Filter (Subsonic): yes, 17 Hz (12 dB / octave)Mute: yesDirect/Line-Straight: yes

Special Features
D/A Converter PartDevice of the Urushi series
