Geeft slecht contact en is goed voor iemand die eraan kan werken.

DataGeneral

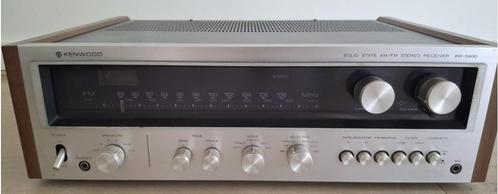

Manufacturer: Kenwood
Model: KR-5400
Years of manufacture: 1974 - 1976
Made in: Japan
Color: silver
Remote control: no
Power consumption: 160 W
Dimensions: 480 x 151 x 344 mm (WxHxD)
Weight: 11,5 kg
Original price approx.: 1'554 DM

Connections
Number of inputs:
2x Phono MM (Cinch): 2.5 mV / 50 kOhm

2x Tape In (Cinch/DIN): 150 mV / 80 kOhm

AUX (Cinch): 150 mV / 80 kOhm
4 Channel In
Microphone: 2.5 mV / 50 kOhm
Antenna FM (75/300 Ohm), AM

Number of outputs:
2x Tape Out (Cinch/DIN): 150 mV / 100 Ohm (Cinch); 30 mV / 80 kOhm (DIN)
4 Channel Out

FM Quadradial

Headphones (6.3 mm jack, front)
3 Loudspeaker Pairs

Technical Specifications
Amplifier
Continuous power

8 Ohm: 2x 35 W (20-20,000 Hz) 4 Ohm: 2x 47 W (1 kHz)
Dynamic power
8 Ohm:
4 Ohm:

Total harmonic distortion: 0.5% (at nominal power)
Attenuation factor: 50 (8 Ohm)
Frequency response:
Preamplifier: 10 - 40,000 Hz (±1 dB).
Power bandwidth: 10 - 30,000 Hz

Signal-to-noise ratio:
Phono MM: 70 dB
AUX, Tape: 90 dB
Microphone: 65 dB

Stereo channel separation:
Tone control:
Bass: ±10 dB at 100 Hz

Treble: ±10 dB at 10 kHz
Loudness: +8/+5 dB (100 Hz/10 kHz)
High Filter: -10 dB at 10 kHz
Low Filter (Subsonic): -8 dB at 100 Hz
Mute: FM Muting
Direct/Line-Straight: no

Tuner
Reception: FM, MW
Frequencies:
FM: 87.5 - 108 MHz

MW: 525 - 1,605 kHz
Frequency response: 20 - 15,000 Hz (+0.5/-1.5 dB, FM)
Input sensitivity:
FM: 1.9 µV (IHF)
MW: 18 µV

Distortion factor:

FM: 0.3% (mono), 0.5% (stereo).

Signal-to-noise ratio:
FM: 68 dB (stereo)

MW: 45 dB
Channel separation:
FM: 35 dB (at 1 kHz).

Selectivity:
FM: 65 dB
MW: 30 dB

Equal wave selection:
FM: 1.5 dB

Spurious wave selection:
FM: 90 dB

Image frequency attenuation:
FM: 70 dB
MW: 60 dB

IF attenuation:

FM: 90 dB
MW: 40 dB

AM suppression: 70 dB
Output level:
RDS: no
Station memory: no

Special Features
Connection for 4-channel adapter
FM quadradial output
