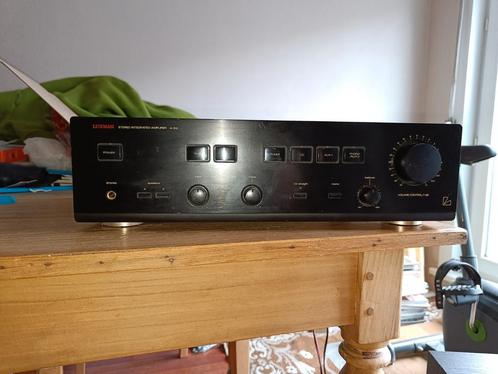

Luxman a-312

General

Manufacturer: Luxman

Model: A-312

Model range: 300 series

Type: Stereo integrated amplifier

Years of manufacture: 1994 - 2000

Made in: Korea

Color: Black

Remote control: No

Power consumption:

Dimensions (W/H/D): 438 mm x 125 mm x 363 mm.

Weight: 7.6 kg

Original price UVP: 498 DM


Connections

Inputs:

Phono MM: 2,5mV / 47kOhm


Tuner: 150mV / 47kOhm CD: 150mV / 47kOhm

Tape Play: 150mV / 47kOhm


DAT: 150mV / 47kOhm

Aux 1: 150mV / 47kOhm

Aux 2, Phono: switchable



Outputs:

Tape Rec:

DAT Rec:

Headphones:

2 pairs of speakers


Technical Data

Continuous power (at distortion factor)

8 Ohm: 2x 55 W (20Hz - 20Khz)


4 Ohm: 2x 70 W

Dynamic power

8 Ohm: 2x 60 W

6 Ohm: 2x 85 W

4 Ohm: 2x 95 W



Frequency response:

Phono MM: 20 Hz - 20 kHz (± 0.5 dB)

High Level: 10 Hz - 60 kHz (+/- 1 dB)



Distortion factor: < 0.008 %

Signal-to-noise ratio:

Phono MM: 82 dB


Phono MC: 62 dB

High Level: 100 dB



Tone control:

Bass: ± 10 dB at 100 Hz


Treble: ± 10 dB at 10 kHz

Subsonic Filter: -
