amplifier

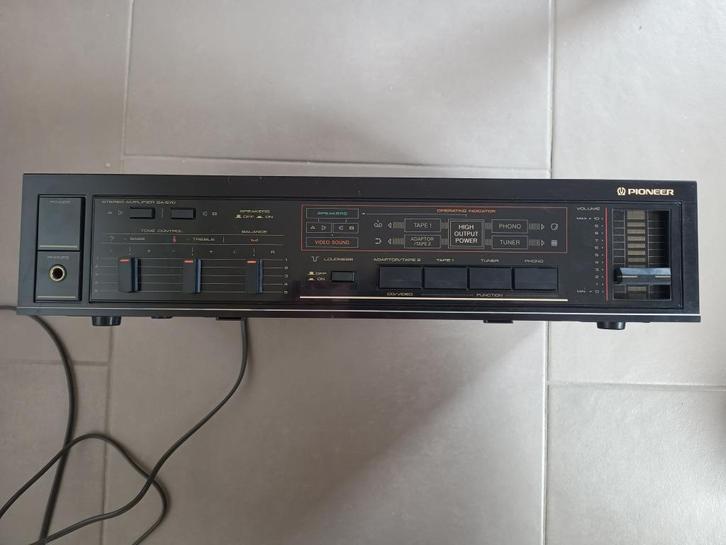

pioneer versterker sa-570

EIGEN FOTOS. werkend.

3 stekkers aan de achterkant, om je componenten aan te sluiten.

• Manufacturer: Pioneer
• Model: SA-570
• Type: Integrated amplifier
• Years of manufacture: 1986 - 1987
• Made in: Japan
• Colors: Silver, Black
• Remote control:
• Power consumption: 240 W
• Dimensions: 420 x 98 x 223 mm (WxHxD)
• Weight: 4 kg
• Original price approx.: 498 DM

Connections

• Number of inputs: 5

Phono: 2.5 mV, 50 kOhm (MM)

• Tuner: 150 mV, 50 kOhm
• AUX: 150 mV, 50 kOhm
• 2 x Tape: 150 mV, 50 kOhm

• Number of outputs:
• Tape Rec:
• 2x Loudspeaker (4 - 16 Ohm)

Technical Data

• Continuous power (at distortion factor)
• 8 Ohm: 2 x 30 W
• 4 Ohm:

• Dynamic power
• 8 Ohm: 2 x 60 W
• 4 Ohm:

• Total harmonic distortion: 0.5 %
• Attenuation factor: 40 (8 Ohm, 20 - 20'000 Hz)
• Frequency response:
• Phono MM: 20 - 20'000 Hz

High level: 20 - 70'000 Hz

• Signal-to-noise ratio:
• Phono: 72 dB
• High level: 98 dB

• Tone control:
• Bass: ±10 dB (100 Hz)

Treble: ±10 dB (10 kHz)

• Loudness: yes, +6 dB (100 Hz), +3 dB (10 kHz)
