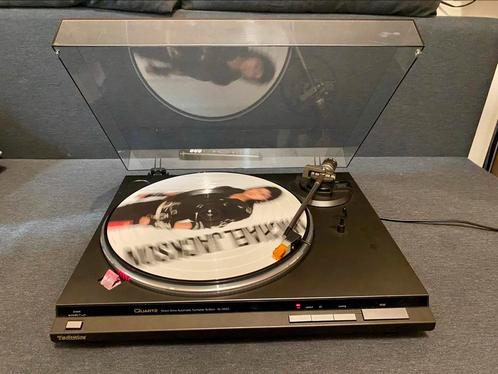

Technics SL-QD22 platenspeler

Werkt uitstekend kan beluisterd en getest worden General

Manufacturer: Technics
Model: SL-QD22
Years of manufacture: 1987 to 1993 (approx. data)
Manufactured in: Osaka, Japan
Color: Technics black
Power consumption: 8 W
Dimensions (WxHxD): 430 x 100 x 375 mm (with open lid: 430 x 100 x 410 mm)
Weight: 4,5 kg
Original price approx.: 450,- DM

Connections

Outputs: 2x RCA Cinch, 1x GND Grounding
Inputs: -

Technical Data

Drive: direct drive
Drive control: Quartz control
Motor: commutatorless DC motor
Speed: 33-1/3 and 45 rpm
Synchronous fluctuations: 0.012% (at the motor), or 0.025% total WRMS
Rumble noise ratio: 56 dB DIN-A, 78 dB DIN-B
Turntable: aluminium injection moulding, diameter 31.2 cm
Operating mode: semi-automatic (automatic return, automatic stop)
Pitch: no
Tonearm: statically balanced, straight tonearm. Insertable pickup, 230 mm long, 15 mm overhang. Tracking error 2°32' at record entry, 13.5g. Tracking force: 1.25g +/- 0.25g, cartridge weight: 6 g.
Cartridge: Moving MM stereo cartridge with full lamella core. TP4 connection
Frequency response: 10 Hz to 40 kHz 2.5V at 1 kHz
Channel separation: > 22dB at 1 kHz.
Impedance: 47 kOhm - 100 kOhm
Replacement needle: EPS-30ES
