8 x Turbosound Focus TFA-400/DP per 2 in FC

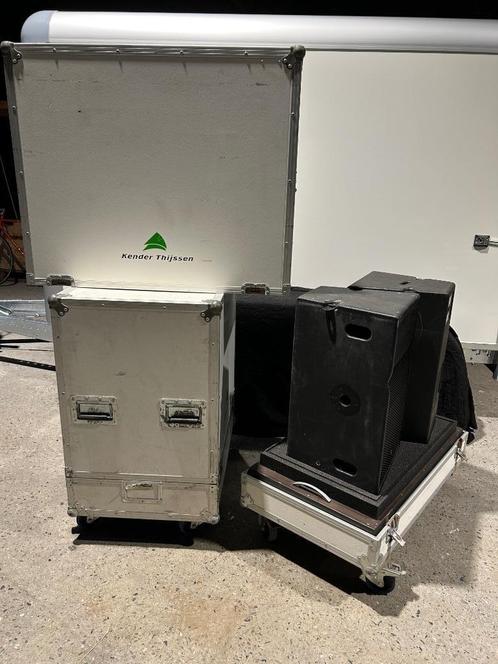

8 x Turbosound Focus TFA-400/DP per 2 in custom made flightcases + 2 x rigging frame

bi-amped constant curve line array

DIMENSIONS (HxWxD) NET WEIGHT COMPONENTS FREQUENCY RESPONSE NOMINAL DISPERSION POWER HANDLING
644mm x 397mm x 363mm (25.4” x 15.6” x 14.3”)
28.5kg (62.7lbs)
1 x 10” (254mm) LF driver, 1 x 6.5” (165mm) MF driver, 1 x 1” HF compression driver
105Hz – 20kHz ±3dB, 90Hz – 22kHz ±10dB
75° non-array plane x 25° array plane
LF: 300 watts r.m.s., 600 watts program MF/HF: 180 watts r.m.s., 360 watts program
LF: 98dB, MF/HF: 105dB, 1 watt @ 1 metre
LF: 16 ohms, MF/HF: 8 ohms
127dB continuous, 133dB peak
15mm (5/8”) birch plywood, finished in black textured polyurethane. Four recessed carrying handles. Pole mount socket
Black powder coated perforated steel backed with reticulated foam
2 x Speakon NL4 wired pin 1+: LF positive, pin1-: LF negative, pin2+: MF/HF positive, pin2-: MF/HF negative
SENSITIVITY IMPEDANCE MAXIMUM SPL CONSTRUCTION
GRILLE CONNECTORS
ACCESSORIES MORE INFO
FB-400 Flybar
GS-400 Ground Stacking Block
