2 RGB-LED-DMX Controllers 30 euro

2 RGB-LED-DMX Controllers 30 euro

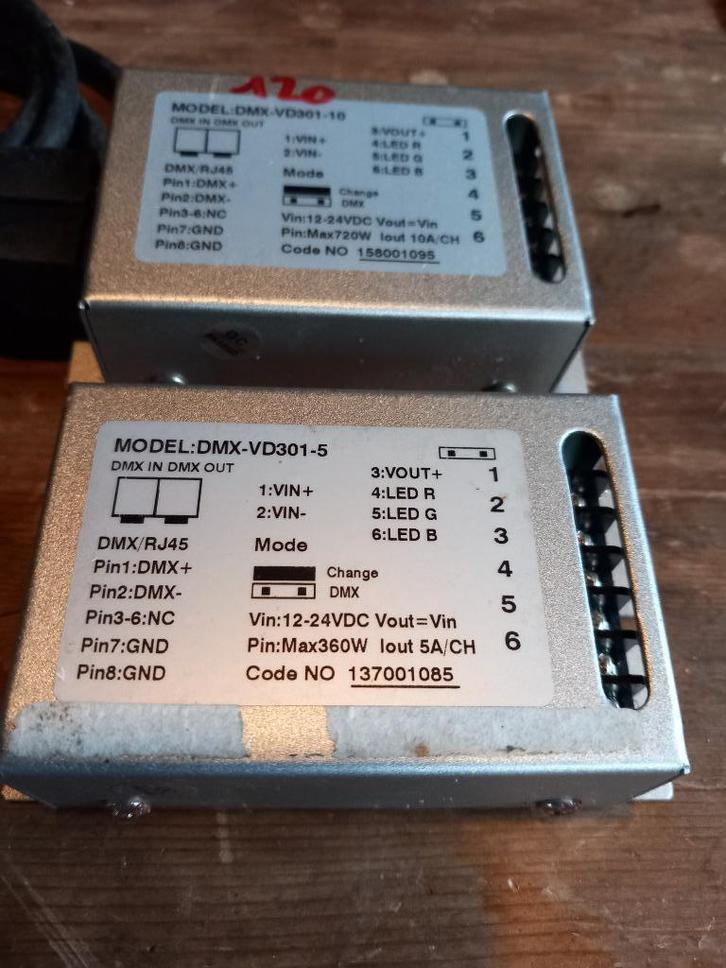

VD301-5 DMX Decoder - ledii

2 maal RGB-LED-DMX Controllers
1 maal CAT NAAR DMX FEM kabel
1 maal CAT naar DMX MALE kabel

Brief Introduction
3-Channel RGB DMX controller is specially designed with constant voltage driven for LED lightings. This controller is equipped with DMX Decoding Module and Constant Voltage Circuit System(up to 5A/10A). This controller is compatible with DMX512/1990 agreements. Suitale for any common anode LED lightings, such as LED modules, LED strips, LED ribbons, LED decorative lightings etc
.
Features and Benefits
Compatible with DMX512/1990 agreements
RGB, three channel output, 0~100% full range dimming,
DMX signal controlled and built-in programmes options
Input voltage: DC9~40V。
R/G/B, each channel up to 5A/10A, power consumption up to 120W/240W each channel
With input and output RJ45 port for DMX connection purpose, easy to use

Technical Specifications
Size:98×57×29mm
DMX channel:3-CH
Color Range:256×256×256=16777216 colors
Input Voltage:DC 9~40V
Input Signal:DMX512/1990，250KHz
DMX Port Capability:256 scale levels
Drive Capability: Up to 170pcs DMX-VD301 devices.
Output Signal:R/G/B, 3 Channel PWM Signal，
Output Signal Frequency:400Hz
Max. Driven Current: DMX-VD301-5:5A , DMX-VD301-10:10A

30 euro
