Nieuwe digital High voltage servo .ideaal voor crawlers of andere rc .

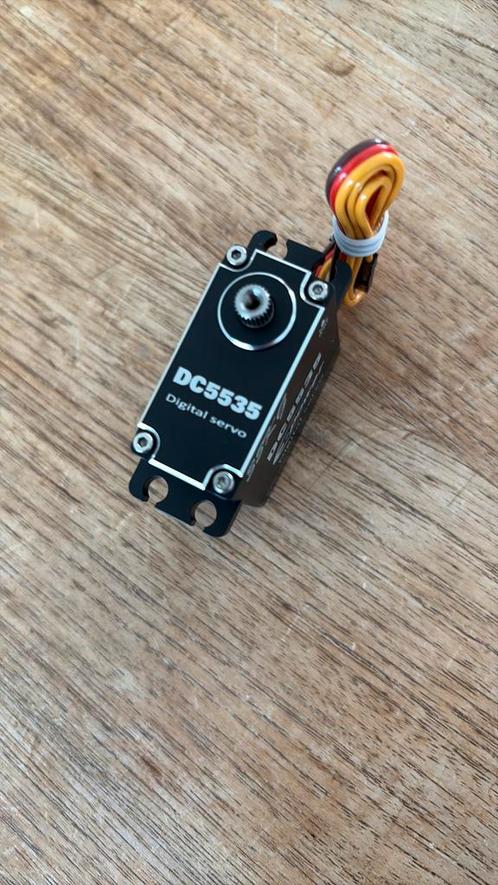

EP DC5535 35KG WATERPROOF DIGITAL SERVO 360° FULL ALUMINUM CASE STAINLESS T STEEL GEAR HIGH TORQUE FOR 1/8 1/10 RC CAR

Features:

1.4.8V -7.4V High voltage, high performance digital High Voltage .
2.Waterproof performance: IP67 (Please watch the waterproof test video). Controllable angle range from 0 to 180 /270 degrees, Excellent linearity, precision control.
3.Widely Use Digital High Torque Servo: This 35kg Waterproof Servo's maximum torque is up to 35 kg/cm@7.4V ,Compatible with 1/8, 1/10, Scale Clawer Truck, Traxxas, scx10, RC Car / Robot / Boat and other remote control models.
4.Metal Gear Servo: Equipped with Stainless Steel Gears, Full CNC aluminum Shell, Less Noise, light weight. Dual ball bearings.
5.High Speed Servo Standard Size: 1.57 x 0.78 x 1.57 inch(40 x 20 x 40 mm); Weight:2.7oz (80g)

Description:

The EP DC5535 35KG Large torque Digital Waterproof servo, adopt DC motor, compared with ordinary servo, the speed is much faster and the reaction is also fast,4.8V -7.4V High Operation Voltage Range,
It's a good accessory for your RC RC Car Truck Crawler Boat Robot and DIY model toy!

Specifications:
Brand: E-Power
Model:DC5535
Color: Black
Control Angle:180°/ 270°optional
Gear Material: Metal Gear
Case Material: Full Aluminum Case
Control System: PWM Control (1500usec in the central point)
Operation Voltage Range:4.8V -7.4V
Storage Temperature Range: -30℃～80℃
Operation Temperature Range:-20C°~ +60C°
Circle:＞80000 times without load
Operation Travel:60°±1
Limit angle :180°± 1/270°± 1 optional
Direction: Re-clock wise/ Pulse Travel 500→2500 μsec
Diver type: Mos Drive
Motor Type: DC motor
Potentiometer Type: Direct Drive
Amplifier Type: Digital Control
Waterproof performance: IP67

Dimensions:40x20x40.50mm
Weight:80g (without servo horn)

Test Voltage: 5V / 6V / 7.4V
Idle current(at stopped): 270mA@5V / 320mA@6V / 360mA@7.4V
Operating speed (at no load):0.37 sec/60°@5V; 0.3sec/60°@6V; 0.25sec/60°@7.4V
Stall torque (at locked): 24.9kg-cm@5V; 30kg-cm@6V; 35.1kg-cm@7.4V
Running Current: 1.9A@5V; 2.3A@6V; 2.8A@7.4V

Dead band width :2µsec
Ball Bearing:2BB
Connector Wire Length: 300MM JR Plug
Connector Wire Gauge:22AWG
Wire Info (Brown):Negative
Wire Info (Red):Positive
Wire Info (Black):Negative
Wire Info (Yellow):S Single
