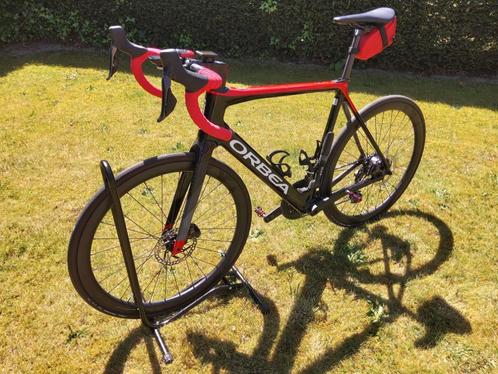

orbea-gain-m20i-2024-elektrische-koersfiets-carbonts

orbea-gain-m20i-2024-elektrische-koersfiets-carbon

https:www.orbea.com/be-en/bicycles/sales/gain/cat/gain-m20i-r

Deze fiets is uitgerust met de laatste nieuwe Shimano Ultegra DI2 2x12sp.

Specs
Frameset
Frame
Orbea Gain Carbon OMR monocoque structure, Integrated Seat clamp with STVZO light, ICR cable routing, Thru Axle 12x142mm rear, thread M12x2 P1, Flat Mount disc, 700x35 max tyre, BB386 EVO, Mahle X20 AMC plug.
Fork
Gain OMR carbon fork, 700x35 maximun tyre, Flat Mount disc, Thru Axle 12x100mm, thread M12x2 P1
Steerer tube
FSA 1-1/2" Integrated Aluminium Cup
Ebike
Battery
Mahle iX350 36V 353Wh
RANGE EXTENDER
N/A
Motor
Mahle motor hub X20, ALC
Display
Mahle Pulsar One monochrome ANT+ LEV
CHARGER
Mahle Active Charger up to 4A
Remote
Mahle ONE Head Unit (BT/ANT+)
Remote2
Mahle Handlebar Dual eShifter
Drivetrain
Crankset
Shimano Ultegra R8100 34x50t
Shifters
Shimano ST-8170
Cassette
Shimano Ultegra R8100 11-30t 12-Speed
Rear derailleur
Shimano Ultegra Di2 R8150
Front derailleur
Shimano Ultegra Di2 R8150
Chain
Shimano M8100
Cockpit
Handlebar
OC Road Performance RP10-R Carbon, Rise 15, Reach 70, Drop 125
Stem
OC Road Performance RP10, -8º
Brakes
Brakes
Shimano R8170 Hydraulic Disc
Brakes Configuration
N/A
Wheels
Wheels
Carbon 42, Tubeless, 21c
Tyres
Pirelli P ZERO™ Race SmartEVO TLR 700x30c
Front Wheel Axle
Orbea Thru Axle 12x100mm M12x2 P1 Lite
Rear Wheel Axle
Orbea Thru Axle 12x142mm M12x2 P1 Lite
Components
Seatpost
OC Performance XP10-S Carbon, 27.2mm, Setback 20
Saddle
Fizik Aliante R5
Accessories
Front light
Rear position light, on saddle clamp, COB Led, On/Off, 12 Lumen. STVZO
Handlebar Tape
Orbea Anti-Slippery/Shock Proof





Fietsmaat LAGE
