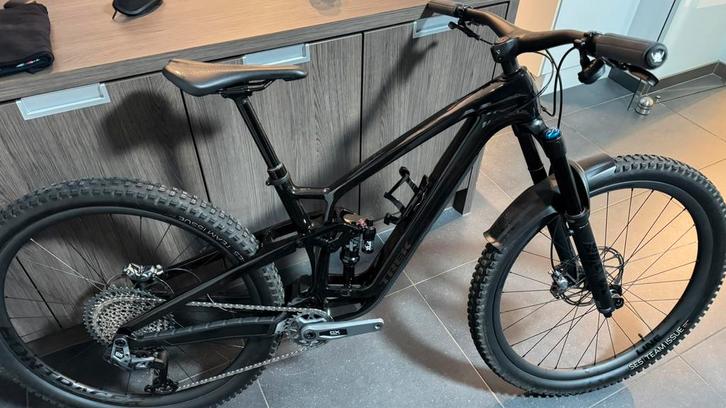

TREK FUEL EX 9.8 GX AXS M 29 CN 2024 - 2025

Size M, 29inch

Used for less than 600km of riding, perfect condition.

Feel free to contact for more info.



Full specs from Trek website

Frame
OCLV Mountain Carbon, internal storage, angle-adjust headset, Mino Link adjustable geometry, adjustable leverage rate, guided internal routing, magnesium rocker link, 34.9mm seat tube, ISCG 05, 55mm chainline, BSA 73, downtube guard, shuttle guard, ABP, UDH, Boost148, 140mm travel
Fork
Fox Performance 36, Float EVOL air spring, GRIP damper, tapered steerer, 44mm offset, Boost110, 15mm Kabolt axle, 150mm travel
Shock
Fox Performance Float X, 2-position damper, 185mm x 55mm

Wheels
Wheel front

Size: XS , S
Bontrager Line Elite 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle, 27.5''
Size: S , M , ML , L , XL
Bontrager Line Elite 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle, 29''
Wheel rear

Size: XS , S
Bontrager Line Elite 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, 6-bolt, SRAM XD driver, Boost148, 12mm thru axle, 27.5''
Size: S , M , ML , L , XL
Bontrager Line Elite 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, 6-bolt, SRAM XD driver, Boost148, 12mm thru axle, 29''
Hub front
Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15mm thru axle
Skewer rear
Bontrager Switch thru axle, removable lever
Rim
Bontrager Line Elite 30, Tubeless Ready
Tire

Size: XS , S
Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 120 tpi, 27.5x2.50''
Size: S , M , ML , L , XL
Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 120 tpi, 29x2.50''
Tire part
Bontrager TLR sealant, 6oz
Rim strip
Bontrager TLR
Max tire size
Frame: 29x2.50" (XS & S: 27.5x2.50"), Fork: See manufacturer

E-system
Battery
SRAM AXS battery pack (with charger)

Drivetrain
Shifter
SRAM AXS POD
Rear derailleur
SRAM GX Eagle AXS, T-Type
Crank
SRAM GX Eagle, T-Type, DUB, 30T, 55mm chainline, 170mm length
Bottom bracket
SRAM DUB MTB Wide, 73mm, BSA threaded
Cassette
SRAM Eagle XS-1275, T-Type, 10-52, 12 speed
Chain
SRAM GX Eagle, T-Type, 12 speed
Max chainring size
1x: 34T round, 32T oval, min 28T

Components
Saddle

Size: XS , S , M , ML , L , XL
Bontrager Arvada, austenite rails, 138mm width
Size: XS , S , M , ML , L , XL
Verse Short Comp, steel rails, 145mm width
Seatpost

Size: XS , S
Bontrager Line Elite Dropper, 100mm travel, MaxFlow, internal routing, 34.9mm, 345mm length
Size: XS , S
Bontrager Line Dropper, 100mm travel, MaxFlow, internal routing, 34.9mm, 310mm length
Size: M , ML
Bontrager Line Elite Dropper, 150mm travel, MaxFlow, internal routing, 34.9mm, 440mm length
Size: M
Bontrager Line Dropper, 150mm travel, MaxFlow, internal routing, 34.9mm, 410mm length
Size: ML , L , XL
Bontrager Line Dropper, 170mm travel, MaxFlow, internal routing, 34.9mm, 450mm length
Size: L
Bontrager Line Elite Dropper, 170mm travel, MaxFlow, internal routing, 34.9mm, 485mm length
Size: XL
Bontrager Line Elite Dropper, 200mm travel, MaxFlow, internal routing, 34.9mm, 550mm length
Handlebar/stem (integrated)

Size: XS , S
Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 27.5mm handlebar rise, 820mm width, 0 degree stem rise, 35mm stem length
Size: M , ML , L , XL
Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 27.5mm handlebar rise, 820mm width, 0 degree stem rise, 45mm stem length
Grips
Bontrager XR Trail Elite, nylon lock-on
Headset
Integrated cartridge bearing, 1-1/8'' top, 1.5'' bottom, angle adjust cup compatible
Brake
SRAM CODE Bronze 4-piston hydraulic disc
Brake rotor

Size: XS , S , M , ML , L , XL
SRAM CenterLine, 6-bolt, round edge, 180mm
Size: M , ML , L , XL
SRAM CenterLine, 6-bolt, round edge, 200mm
Rotor size
Max brake rotor sizes - Frame: 203mm, Fork: see fork manufacturer

Accessories
Bag
Bontrager BITS Internal Frame Storage Bag

Weight
Weight
M - 14.53 kg / 32.04 lbs (with TLR sealant, no tubes)
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).
