Universele signaal omvormer
€ 138,46
Verzenden
110sinds 10 jan. '25, 08:40
Beschrijving

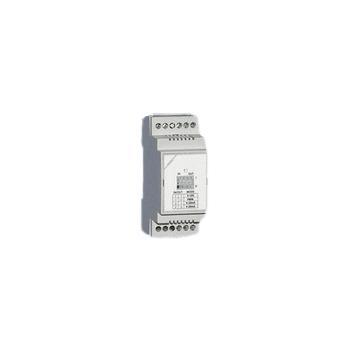

The CVT-UCVP-DR signal converter provides precise signal conversion and isolation between sensors, PLCs and other control sources. Applications include industrial automation, test equipment and home automation.
The CVT-UCVP-DR universal signal converter offers three-way isolation and is designed to convert standard process input/output signals. A robust power supply interface of 18-32 VDC / 12-18 VAC and is suitable for machine applications. At the same time of the conversion, a galvanic isolation is created. This filters out noise signals that may exist when used in specific applications. The PCB has a conformal coating and is located in a DIN rail housing that is ideally suited for mounting in a control panel.- 0-10 VDC/0-20 mA/4-20 mA/PWM input, adjustable via switch
- 0-10 VDC/0-20 mA/4-20 mA/PWM output, adjustable via switch
- Three-way galvanic isolation (input, output, supply)
- DIN rail mounting
- Power supply 18-32 VDC / 12- 18 VAC with transient and overvoltage protection
- Input impedance in voltage and PWM mode 140 KOhm
- Input impedance in current mode 250 Ohms Load impedance in voltage mode 500 Ohms minimum
- Load impedance in current mode 500 Ohm
- maximum insulation > 1000 VDC
- Accuracy / - 0.05% FSD
- Red LED indication for power supply status
- terminal strips suitable for 0.5-2.5 mm² cable (3x2.5 mm²)
- load (PWM open collector) < 150 mA
- load (PWM open collector) < 150 mA
Zoekertjesnummer: a146188928
