Product Specifications

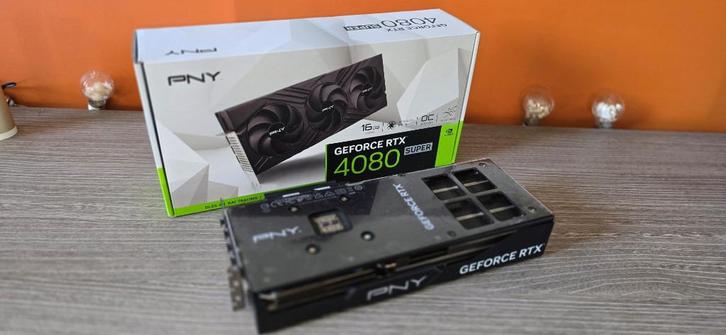

PNY Part Number VCG4080S16TFXPB1-O
UPC Code 751492786377
CUDA Cores 10240
Clock Speed 2295 MHz
Boost Speed 2565 MHz
Memory Speed (Gbps) 23
Memory Size 16GB GDDR6X
Memory Interface 256-bit
Memory Bandwidth (GB/sec) 736
TDP 320 W
NVLink Not Supported
Outputs DisplayPort 1.4a (x3), HDMI® 2.1
Multi-Screen 4
Resolution 7680 x 4320 @120Hz (Digital)3
Power Input 16-pin (One 16-pin to Three 8-pin)
Bus Type PCI-Express 4.0 x16
Card Dimensions 13.4" x 5.67" x 2.42"; 3 slot
Box Dimensions 15.94" x 7.83" x 4.06"

Powered by NVIDIA DLSS 3, ultra-efficient Ada Lovelace arch, and full ray tracing

Dedicated Ray Tracing Cores

Dedicated Tensor Cores

NVIDIA DLSS 3

Game Ready and NVIDIA Studio Drivers

NVIDIA® GeForce Experience™

NVIDIA Broadcast

NVIDIA G-SYNC®

NVIDIA GPU Boost™

PCI Express® Gen 4

Microsoft DirectX® 12 Ultimate

Vulkan RT APIs, Vulkan 1.3, OpenGL 4.6

HDCP 2.3

DisplayPort 1.4a, up to 4K at 240Hz or 8K at 60Hz with DSC, HDR

As specified in HDMI® 2.1a: up to 4K 240Hz or 8K 60Hz with DSC, Gaming VRR, HDR

Support Bracket Included

One 16-pin to Three 8-pin Power Cable Included
