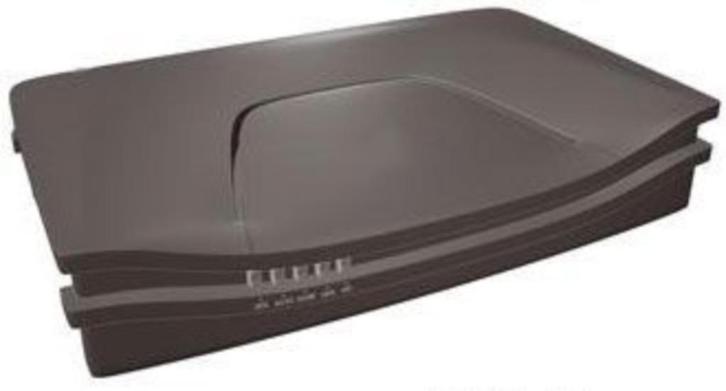

SAGEM F3464AB BGC Wireless VDSL Modem/Router

Ideaal voor Proximus/Scarlet/EDPNet
• Network : multimode VDLS2/ADSL2+
- VDSL2 : G 993.2
- ADSL2+ : ANSI T1 413 Iss
ITU G.992.1 (G.dmt)
ITU G992.3, G992.5
Annex A or B (option)
• User :
- 4 Eth 10/100BT
- USB 1.1 slave for PC
- USB 2.0 host for Accessories
- 802.11g or 802.11draft-n
(Wi-Fi access point)
- 1 or 2 FXS
WIRELESS SECURITY
• WPA/WEP with 64 or 128 bits key
• MAC Address Access List
• Easy Pairing (WPS)
WAN PROTOCOLS
• VDSL2 :
- VLAN with QoS (up to 16 VLAN)
- Encapsulation: IP/Eth or PPPoE
• ADSL :
- ATM AAL-5
- UBR, CBR, VBRrt, VBR nrt
- 16 Vcc max
- OAM cells
- Encapsulations: IP/ATM or
Eth/ATM, PPPoA ,PPPoE
PPP FUNCTIONS
• PAP/CHAP
• Multi PPPoE sessions
- PPPoE client termination
- PPPoE session passthrough
IP FUNCTIONS
• General :
- NAT/PAT
- DHCP client and server
- DNS relay
• Routing : Static routing
• Firewall
- Address, port and protocol filtering
- Statefull Packets Inspection
• Quality of service : DiffServ
VOICE OVER IP (VOIP)
• Protocol : H323 or SIP or MGCP
(software option)
• Voice coding :
- G711 (64 kbps)
- G729 (8 kbps)
• External Power supply
• Size (L x D x H in mm) : 263 x 184 x 42
• Weight (g) : 1000
Winkelprijs: 249 EUR.
