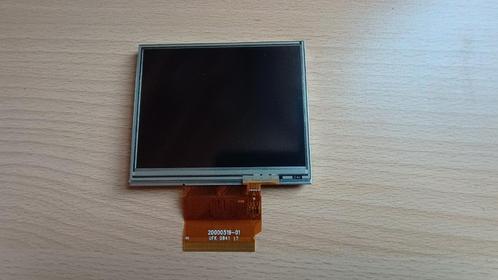

3.5" Inch Lcd Scherm Innolux PT035TN23 V.1

Innolux Corporation (hereafter called Innolux) PT035TN23 V.1 is a 3.5 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, without touch screen.

PT035TN23 V.1 supports display 320(RGB)×240 (QVGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 70.08(W)×52.56(H) mm, outline size of 76.9(W)×64.4(H)×4.43(D) mm, viewing area size of 72.08(W)×54.56(H) mm, with surface treament of Antiglare, net weight of 43.0g (Typ.). As a TN, Normally White, Transmissive LCM product, PT035TN23 V.1 can provides 350 cd/m² display brightness 500:1 transimissive contrast ratio, 65/65/50/65 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 9/16 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors.
