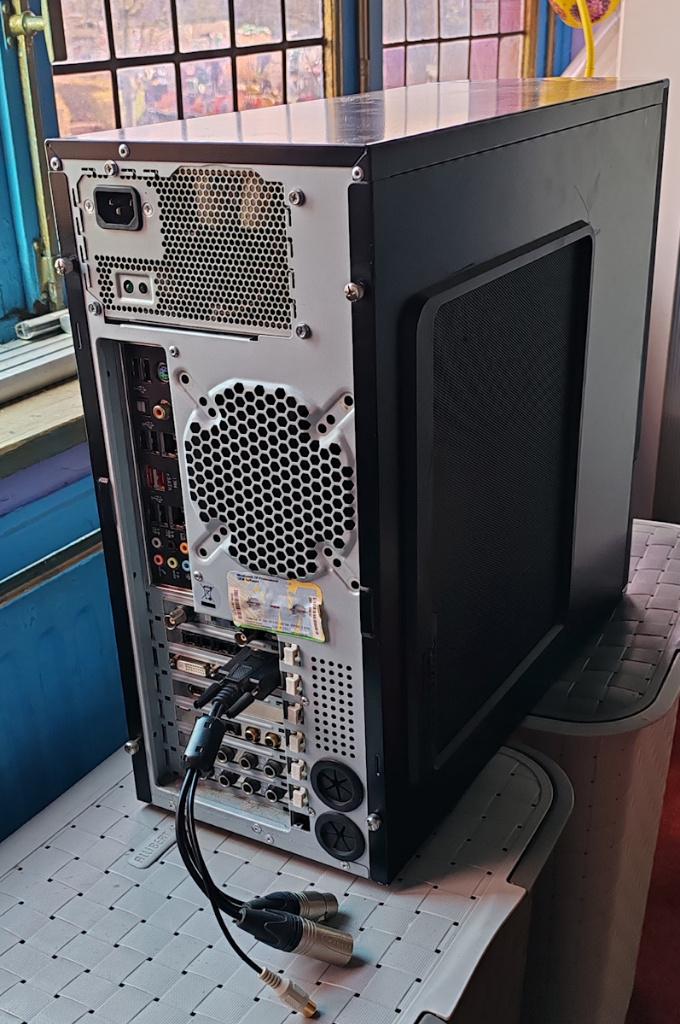

AUDIO & STUDIO TOWER PC (OS: WINDOWS XP PRO LICENSED)

- GIGABYTE TOWER
- ASUS P5Q-E MOTHERBOARD
- 16 GIGABYTE MEMORY
- 1 X SSD 80 GIGABYTE (SYSTEM WINDOWS XP PRO)
- 4 X 250 GIGABYTE HD DISKS

AUDIO SPECIFICATIONS:

1 X RME DIGI 96/8 (Inputs and outputs ground-free transformer coupled) + BREAKOUT CABLE

DIGITAL Connectors:

- Optical (S/PDIF/-TOSLINK)
- Coaxial (S/PDIF-RCA PHONO)
- Internal (CD-ROM/Sync-In, Sync-Out)44KHz 16Bit

DIGITAL Formats:

- SPDIF (UP TO 96KHz 24Bit)
- AES/EBU (Consumer/Professional)(UP TO 96KHz 24Bit)
- ADAT optical (UP TO 96KHz 24Bit)

1 X RME DIGI 96/52 (Inputs and outputs ground-free transformer coupled)

DIGITAL Connectors:

- Optical (TOSLINK)
- Coaxial (RCA PHONO)
- Internal (CD-ROM/Sync-In, Sync-Out)44KHz 16Bit
- WORD CLOCK (I-O)
- ADAT SYNC IN

DIGITAL Formats:

- SPDIF (UP TO 96KHz 24Bit)
- ADAT optical (UP TO 96KHz 24Bit)

1 X RME AEB8/I (ANALOG IN)

-8 X ANALOG IN:

Dynamic ratio: 104 dB (RMS unweighted), 107 dBA
• THD+N: -95 dB (0.0017 %)
• Frequency response -0.1 dB: 10 Hz - 21 kHz
• Input level for 0 dBFS @ +4 dBu: +12 dBu
• Input level for 0 dBFS @ -10 dBV: +2 dBV
• Crosstalk: > 110 dB
• Supported sample rates: 32 kHz - 48 kHz

1X RME AEB8/O (ANALOG OUT)

Dynamic ratio: 103 dB (RMS unweighted), 106 dBA
• THD+N: -95 dB (0.0017 %)
• Frequency response -0.1 dB: 10 Hz - 21 kHz
• Output level for 0 dBFS @ +4 dBu: +12 dBu
• Output level for 0 dBFS @ -10 dBV: +2 dBV
• Crosstalk: > 110 dB
• Supported sample rates: 44.1 kHz, 48 kHz

1X RME WCM MKII (WORD CLOCK)

• Low Jitter Design: typical 2.5 ns (PLL / Test), < 1 ns (Masterclock)
• Input PLL ensures zero dropout, even at more than 40 ns jitter
• High sensitive input stage works from 1 Vpp input level
• Rejects DC offsets in the word clock net
• Overvoltage protected input stage
• Short protected output stage
• Frequency range PLL input: 27 kHz - 102 kHz
• Frequency range output: 27 kHz - 102 kHz
• Input BNC, high impedance (> 10 kOhm)
• Output BNC, low impedance (10 Ohm)

INCLUDED ALL NECESSARY DRIVERS
