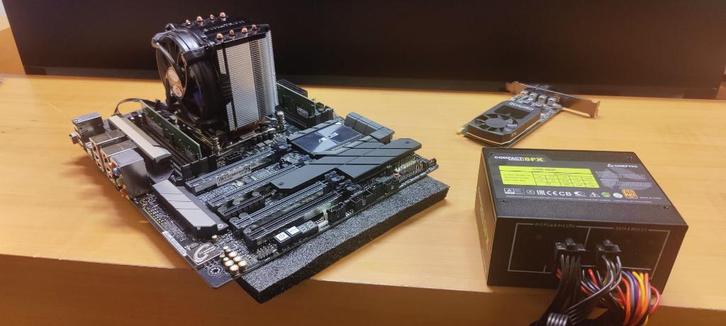

💻 Degelijke, kwalitatieve set van een Asus Workstation C422 moederbord inclusief processor, RAM, licentie voor Windows 11 Pro (cleane installatie), videokaart, NVME van 250GB, CPU cooler en SFX voeding.

! I/O shield - backplate ontbreekt.

Klaar om in te bouwen in een case.

🔧 Specificaties:

• CPU: Intel Xeon W-2255 SRGV8 3.70GHz 19.25MB 10-Core LGA2066
• Moederbord: Asus Workstation WS C422 PRO/SE met laatste BIOS v4701
• Opslag: Samsung 970 Evo Plus 250 GB
• RAM: 16 GB 2 modules van 8GB KSM29RS8/8HDR PC4-2933 CL21 Registered w/Parity 288-Pin DIMM
• Voeding: Chieftec CSN-450C PC-netvoeding 450 W SFX 80 Plus Gold, enkel de kabels die je op de foto ziet
• Videokaart: Nvidia Quadro P620 2GB - 4x Mini DisplayPort
• CPU Cooler: Dynatron
• Besturingssysteem: Windows 11 Pro

Specs moederbord:

Geheugen

8 x DIMM, Max. 512GB, DDR4 2666/2400/2133 MHz RDIMM, LR-DIMM Memory *1,Quad Channel Memory Architecture

Slots

48-Lane CPU-,2 x PCIe 3.0 x16 (x16 mode),1 x PCIe 3.0 x4 (x4 mode),2 x PCIe 3.0 x16 (Single at x16, dual at x8/x8)

Intel® LGA2066 ATX-moederbord met volledig beheer van IT-infrastructuur en ondersteuning Intel® Xeon® processor en ECC-geheugen

Aangedreven door Intel® Xeon® W-processor met ECC-geheugen
ASUS Control Center - Een software hulpprogramma dat handig, veilig en kostenbesparend gecentraliseerd IT-beheer biedt voor kleine en middelgrote bedrijven
Serverniveau ontwerp met ingebouwde dubbele Intel Gigabit LAN
Volgende generatie overdrachtssnelheden - tot 32Gbps dubbele M.2 en U.2, plus tot 10Gbps USB 3.1 Type-A en Type-C aansluitingen.
Ultieme grafische power met 2/3-weg NVIDIA® SLI™ en AMD® CrossFire X™
Ultra-efficiënt VRM koellichaam - metalen vin array via een heatpipe verbonden met groot oppervlak, temt C422-thermiek om onafgeknepen prestaties mogelijk te maken.

Opslag

1 x M.2 x4 Socket 3*2, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode),1 x M.2 x4 Socket 3*3, with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode),1 x U.2 connector*2,Intel® Virtual RAID (VROC) support for CPU RAID,Intel® Rapid Storage Technology Enterprise supports,Support Raid 0, 1, 10

LAN

Intel® I210-AT, 2 x Gigabit LAN Controller(s)

Audio

High quality120dBSNR stereo playback output(Line-out at rear)and113dBSNR recording input(Line-in),- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, Front Panel MIC Jack-retasking,Realtek® ALC S1220A8-Channel High Definition Audio CODEC featuring Crystal Sound 3,- Power pre-regulator reduces power input noise to ensure consistent performance,- DTS Connect,- DTS Headphone:X,- Supports up to 32-Bit/192kHz playback *4,- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers,- Impedance sense for front and rear headphone outputs,Audio Feature :,- Optical S/PDIF out port(s) at back panel,- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference,- Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity,- Unique de-pop circuit: Reduces start-up popping noise to audio outputs,Separate layer for left and right track, ensuring both sound deliver equal quality
USB poorten

6 x USB 2.0 port(s) (4 at back panel, , 2 at mid-board),Intel® C422 Chipset :,6 x USB 3.1 Gen 1 port(s) (4 at back panel, , 2 at mid-board),2 x USB 3.1 Gen 2 port(s) (2 at back panel, , Type-A + USB Type-CTM),ASMedia® USB 3.1 Gen 2 controller :,1 x USB 3.1 Gen 2 front panel connector port(s)

I/O achterzijde

4 x USB 3.1 Gen 1 (blue),4 x USB 2.0 (one port can be switched to USB BIOS Flashback™),2 x USB 3.1 Gen 2 Type-A + USB Type-CTM,,1 x 8-channel Audio I/O,1 x USB BIOS Flashback™ Button(s),2 x LAN (RJ45) port(s),1 x Optical S/PDIF out

Interne I/O

1 x Aura RGB Strip Headers,2 x CPU Fan connector(s),1 x U.2 connector,3 x System panel connector,1 x Front fan,1 x Rear fan,1 x Aspeed VGA header,1 x PUMP Fan connector,1x 6-pin ATX 12V Power connector,2 x 8-pin ATX 12V Power connector(s),1 x CPU_OV jumper,1 x MemOK! button(s),1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s),1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s),1 x Thunderbolt header(s),1 x 5-pin EXT_FAN(Extension Fan) connector,1 x Aura Addressable Strip Header(s),1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode),1 x VROC_HW_Key,1 x USB 3.1 Gen 2 front panel connector,1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode),6 x SATA 6Gb/s connector(s),1 x Power-on button(s),1 x Reset button(s),1 x AAFP connector,1 x AIO_PUMP connector,1 x Thermal sensor connector(s),1 x COM port header,1 x 24-pin EATX Power connector(s)

Specs RAM:

Kingston's KSM29RS8/8HDR is a 1G x 72-bit (8GB)
DDR4-2933 CL21 SDRAM (Synchronous DRAM) registered w/
parity, 1Rx8, ECC, memory module, based on nine 1G x 8-bit
FBGA components. The SPD is programmed to JEDEC
standard latency DDR4-2933 timing of 21-21-21 at 1.2V. Each
288-pin DIMM uses gold contact fingers
