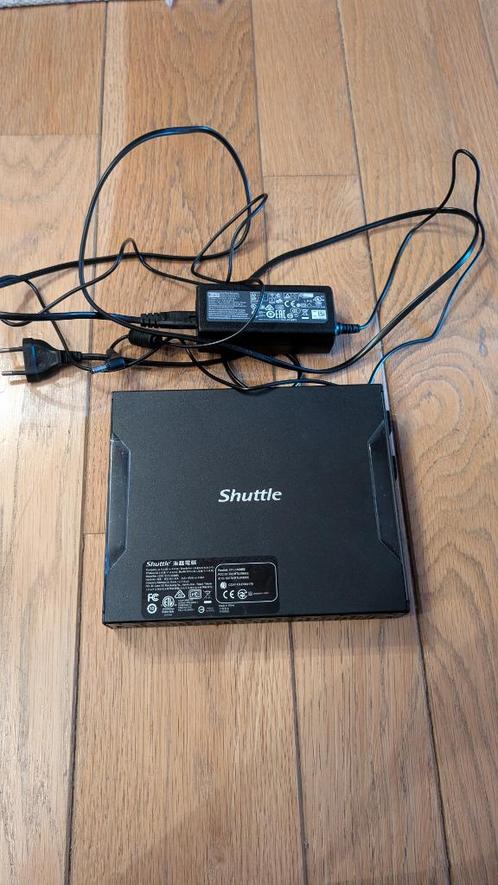

Shuttle mini PC DS68U met power adapter

Intel Celeron 3855U
2 GB RAM (1 stick)
256 GB M.2 SSD
dual Intel LAN NIC
plaats voor 1 x 2.5 inch schijf
inlcusief power adapter

Ideaal als pfSense of OPNsense firewall / router


FORM FACTOR Shuttle 1.3L Chassis PROCESSOR Intel Celeron 3855U Processor
MEMORY 2 x 204 pin DDR3L SODIMM slots, 16GB per DIMM (Max 32GB)
Dual Channel DDR3L 1333/1600 Mhz VIDEO OUTPUT VGA + HDMI dual display AUDIO Realtek ALC662 2 channel High Definition audio ETHERNET Intel i211 and i219LM
100Mb/s and 1Gb/s operation
Support Wake-On-LAN function
Realtek RTL 8188EE 802.11 b/g/n WLAN module STORAGE INTERFACE 6.0Gb/s bandwidth SATA3

ONBOARD CONNECTORS (1) 2.5 inch SATA connector
(1) Auto Power on Jumper
(1) Clear CMOS FRONT PANEL (1) Power on button
(1) Power LED
(1) HDD LED
(2) USB 2.0 ports
(2) USB 3.0 ports
(1) RS232/RS422/RS485
(1) RS232
(1) SD Card reader BACK PANEL (2) RJ45 Gigabit LAN
(1) HDMI
(1) VGA
(2) USB 2.0 ports
(1) MIC in
(1) SPK out
(1) External 4 pin header (Clear CMOS/Power Switch/5V)
((1) DC-in
(1) Kensington lock
(2) Wireless antenna fixture DRIVE BAYS (1) 2.5" HDD / SSD bay
DIMENSIONS 200(L) x 165(W) x 39.5(H) mm
Dimension drawing POWER Input:100- 240V AC
Output: 19V/3.42A or 12V/5.42A DC
65W 19V Adapter bundled EXPANSION SLOT (1) M.2 2280 Type M key socket
(1) M.2 2230 Type A,E Key socket OS SUPPORT Windows 7
Windows 8.1
Windows 10
Linux
