Beschrijving
GM Item No.7825636
Paragon Item No.17594
Car Years 11963 1964 1965 1966 () 1967 1968 1969 1970 () 1971 1972 1973 1974 () 1975 1976 1977 1978 () 1979 1980 1981 1982 ()
Part #562336
DescriptionCORVETTE HYDRAULIC CONTROL VALVES 562350

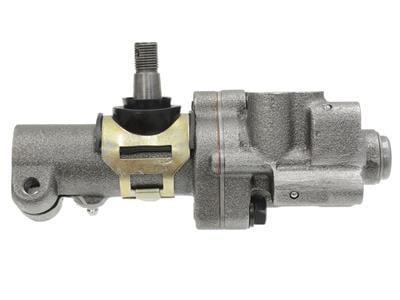

The power steering control valve sends fluid to the power steering cylinder. Control valves can wear and, with their multiple fluid connections, leaks are inevitable. Many control valves are replaced due to what appears to be excess play in the ball stud. The stud used in this valve is 1/2 inch x 20 thread. The stud length is 1 1/8 inch from the face of the boot to the end of the stud. 1 5/8 inch overall lengthfrom casting to end of stud (measuring at the end of the boot). Relay rod end is 1 inch x 18 thread. It is about 1 1/8 inch deep and has threads the whole length of this depth. The pinch bolt on this valve is 3/8 inch x 16 x 1 1/2 inch and is agrade 8 fastener.
Voor nog veel meer producten.
Ga eens naar www.ajspeedshop.nl
De onderdelenshop voor de Amerikaanse auto's.
Langs komen in de shop kan ook dan kunt u ons uitgebreide assortiment zelf zien.
Geopend van:
maandag t/m zaterdag
Van 10:00 tot 17:00 uur.
AJ Speedshop
Verlaatweg 37
8243ps Lelystad
Tel: 0320-212666 of 06-11342562
Email: ajscorvette@hotmail.com
Paragon Item No.17594
Car Years 11963 1964 1965 1966 () 1967 1968 1969 1970 () 1971 1972 1973 1974 () 1975 1976 1977 1978 () 1979 1980 1981 1982 ()
Part #562336
DescriptionCORVETTE HYDRAULIC CONTROL VALVES 562350
The power steering control valve sends fluid to the power steering cylinder. Control valves can wear and, with their multiple fluid connections, leaks are inevitable. Many control valves are replaced due to what appears to be excess play in the ball stud. The stud used in this valve is 1/2 inch x 20 thread. The stud length is 1 1/8 inch from the face of the boot to the end of the stud. 1 5/8 inch overall lengthfrom casting to end of stud (measuring at the end of the boot). Relay rod end is 1 inch x 18 thread. It is about 1 1/8 inch deep and has threads the whole length of this depth. The pinch bolt on this valve is 3/8 inch x 16 x 1 1/2 inch and is agrade 8 fastener.
