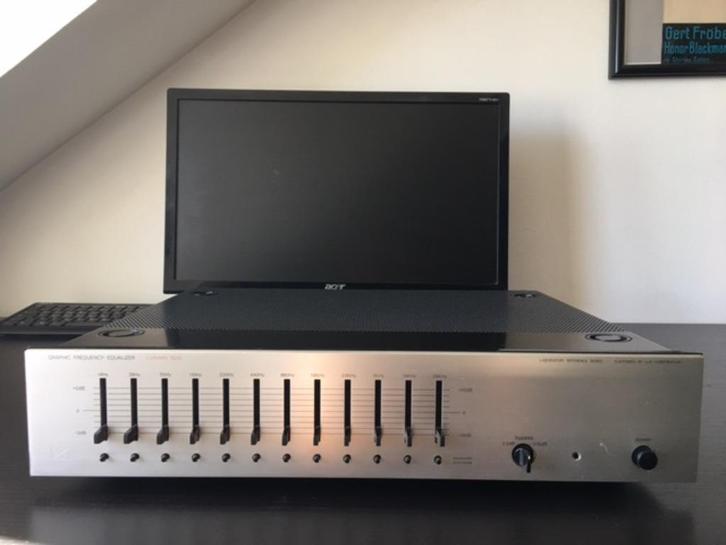

Zeldzame equalizer uit de laboratorium reeks van Luxman.
Toestel verkeerd in perfekte staat (heel weinig gebruikt).

Data - General :
· Manufacturer: Luxman
· Model: Laboratory Reference 5G-12
· Type: Equalizer
· Years of manufacture: 1976 - 1982
· Made in: Japan
· Color: Silver
· Power consumption: 30 W
· Dimensions (WxHxD): 442 x 101 x 400mm
· Weight: 7.2 kg
· Original price approx.: 145'000 Yen (Japan, 1977), 645 US-$, 1'900 DM

Connections
· Number of inputs: 1
o Line Cinch: 1 V, 500 Ohm, max. 5 V
· Number of outputs: 2
o Line 1, 2: 1 V, 100 kOhm

Technical Data
· Frequency response: 10 to 100 kHz
Distortion factor: < 0,005%
· Signalrauschabstand: >115 dB IHF A
· Crosstalk attenuation: 70 dB
· Tone control with 12 sliders
· Equalizer center frequencies:
o 14Hz, 28Hz, 55Hz, 110Hz, 220Hz, 440Hz, 880Hz, 1.8kHz, 3.5kHz, 7kHz, 14kHz, 28kHz.
o Control range: Normal, ± 2 dB, ± 10 dB, switchable (1 or 2 dB steps)
