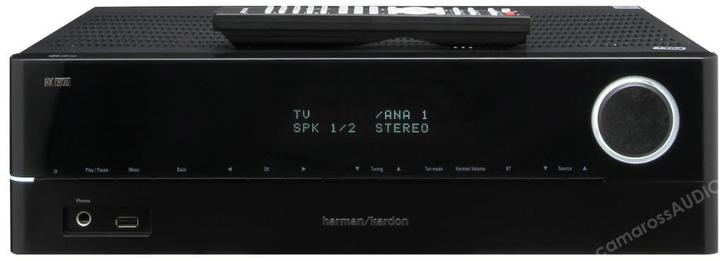

Ampli Harman Kardon HK3770

Highlights • Bluetooth® connectivity • Optical and coaxial inputs • DLNA® network compatible • Built-in 24-bit/192kHz DAC • Phono input • vTuner™ (Internet radio) streaming • Harman Kardon Remote app for compatible iOS® and Android™ smartphones and tablet • Front-panel USB port for connection to compatible Apple® products or USB flash drive • Ultrawide bandwidth • A/B speaker selection • Headphone output • Subwoofer output Power • 120W x 2 into 8 ohms, 20Hz – 20kHz, at <0.07% THD, with all channels driven simultaneously • High-current (±40 amps) • Ultra wide frequency response (@1W) 10Hz – 130kHz (+0dB/3dB) amplifier design • Signal-to-noise ratio (IHF-A): 100dB FM Tuner • Frequency range: 87.5MHz – 108.0MHz • Usable sensitivity IHF: 1.3µV/13.2dBf • Signal-to-noise ratio (mono/stereo): 70dB/68dB • Distortion (mono/stereo): 0.2%/0.3% • Stereo separation: 40dB @ 1kHz • Selectivity (±400kHz): 70dB AM Tuner Section • Frequency range: 110V: 520kHz – 1710kHz, 220-240V: 522kHz – 1620kHz • Signal-to-noise ratio: 38dB • Usable sensitivity (loop): 500µV • Distortion (1kHz, 50% mod): 1.0% • Selectivity (±10kHz): 30dB HARMAN International Industries, Incorporated 8500 Balboa Boulevard, Northridge, CA 91329 USA Connectivity • Bluetooth® connectivity • Five analog audio inputs • One coaxial audio input • Two optical digital inputs • USB input on the front panel to connect an iPod®, iPhone® or iPad® using an Apple® cable (not supplied) or to connect a USB f lash drive with music content (MP3, WMA or WAV format) • One high-quality phono input for connecting to record players with an MM cartridge • Subwoofer output with trigger for direct connection to powered subwoofers • One analog-recording output • Network RJ45 connection to enjoy Internet radio and content from DLNA®-compatible devices that are connected to the network What’s in the box • 1 Harman Kardon HK 3770 Stereo Receiver • 1 Remote control • 2 AAA batteries • 1 FM radio antenna • 1 AM antenna loop 1 6’ (1.8m) region-specific IEC power cord • Quick Start Guide Specifications • Power requirement: 120V AC/60Hz or 220-240V AC/50/60Hz (different models) • Power consumption: <0.5W (standby); 480W maximum • Dimensions (H x W x D): 4-3/4" x 17-5/16" x 11-13/16" (121mm x 440mm x 300mm) • Weight: 6kg
