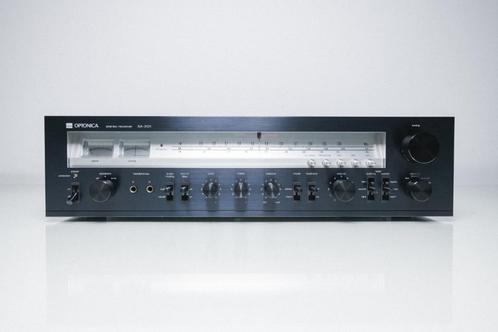

Optonica (Sharp) SA-3131 Stereo Receiver

Wegens upgrade aangeboden. In zeer goede cosmetische en technische staat. Zie fotos.
Alles is geheel werkend, inclusief de VU-meters.
Geluid is top, geen gekraak of ruis.

Met houten zijpanelen.

Indien gewenst kan je het hier komen bekijken en beluisteren.

Verzending is mogelijk, maar het is een zwaar apparaat (16kg)

Zie ook mijn andere advertenties voor de Optonica RT-3838 Casettedeck.


Specificaties:

• Number of Transistors: 42

• Main principle: Superheterodyne (common); ZF/IF 455/10700 kHz

• Wave bands: Broadcast, Long Wave and FM or UHF.

• Power type and voltage: Alternating Current supply (AC) / 110; 220; 240 Volt

• Loudspeaker: This model requires external speaker(s).

• Power out: 80 W

• Material: Metal case

• Shape: Book-shelf unit.

• Dimensions (WHD): 550 x 142 x 390 mm / 21.7 x 5.6 x 15.4 inch

• Notes:

Sharp Optonica SA-3131H;
2 x 65 W Sinus.
Tuning range: FM 87.6 - 108 MHz, MW 520 - 1620 kHz, LW 150 - 370 kHz
P.L.L. stereo demodulation circuit
Continuous Power output:
2x65W into 4Ω both channels driven at 1kHz, 0.1% distortion
2x40W into 8Ω both channels driven at 1kHz, 0.1% distortion
Total harmonic distortion: 0.05% at 40W (AUX IN)
Intermodulation distortion: 0.1% at 40W (AUX IN)
Damping factor: more than 20 (at 1kHz, 4 Ohms)
Power bandwidth: 10Hz-20kHz
Input sensitivity and input impedance:
Phono 1: 2.5mV/50K ohms
Phono 2: 2.5mV/50K ohms
AUX: 150mV/50K ohms
TAPE PLAYBACK 1 and 2: 150mV/50K ohms
Output level and loaded impedance:
REC 1 and 2: 150mV/50K ohms
REC 1 and 2 (DIN socket): 30mV/80K ohms
Phono overload: 220mV (R.M.S. 1kHz, 0.1% T.H.D.)
"RIAA" curve deviation (Phono)+-0.5dB
Frequency responce: 10Hz-50kHz +-1.5dB (AUX, TAPE PLAYBACK)
Tone control:
Bass +-10dB at 100Hz
Treble +-10dB at 10kHz
Low cut filter: 30Hz, 6dB/oct
Audio muting: -20dB
6 ICs, 42 transistors (7 FET), 40 diodes (4 zener), 2 LEDs.

• Net weight (2.2 lb = 1 kg): 16 kg / 35 lb 3.9 oz (35.242 lb)
