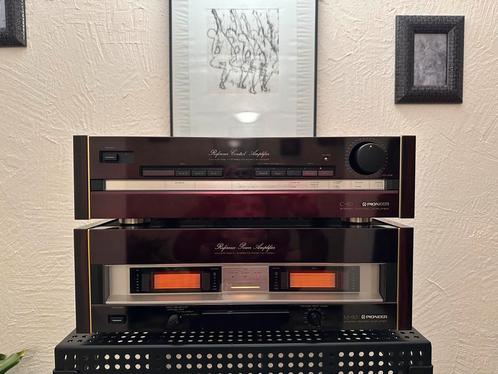

Pioneer M-90+C90 urushi

Pioneer M-90
Type Stereo power amplifier
Rated output
(20 Hz to 20 kHz, both channel drive) 200W + 200W (4 Ω)
200W + 200W (8 Ω)
Harmonic distortion factor (20 Hz to 20 kHz) 0.003% (8 Ω at Rated Output)
Intermodulation distortion factor (50 hz : 7 khz = 4 : 1) 0.002% (20 Hz to 20 kHz, 200W, 8 Ω)
Input Sensitivity / Impedance Control Amp In, CD Direct, Line, Direct : 1V/50k Ω
Output terminal CD/Line Direct Out, Speaker A, B, Headset
Frequency characteristic 20 Hz ~ 20 kHz + 0 -0.1 dB
Signal-to-noise ratio 125 dB (IHF, short circuit, A network)

Power consumption 410W
External dimensions Width 457x Height 154x Depth 430 mm
Weight 20.9kg

Pioneer C-90

Type Stereo control amplifier
Input Sensitivity / Impedance Phono MM : 2.5mV/50k Ω
Phono MC/40 Ω : 250 μ V/40 Ω
Phono MC/3 Ω : 125 μ V/3 Ω
CD, Tuner, Tape Play1, 2, VDP, VTR1, 2, 3, TV Tuner : 150mV/50k Ω
Output Level / Impedance Tape Rec : 150mV/1k Ω
Pre Out : 1V/600 Ω
Phono maximum allowable input
(1 kHz, 0.1% distortion rate) Phono MM:200mV
Phono MC/40 Ω : 20 mV
Phono MC/3 Ω : 10 mV
Tone control Bass : ± 9 dB (100 Hz)
Treble : ± 9 dB (10 kHz)
Signal-to-noise ratio (IHF, short circuit
A network) Phono MM:96dB(5mV)
Phono MC : 86 dB (500 μ V)
Tuner, CD, Tape Play, VDP, VTR : 109 dB

Power consumption (Electrical Appliance and Material Control Law) 36W
External dimensions Width 457x Height 124x Depth 404 mm
Weight 9.7kg

Beluisteren voor aankoop is altijd mogelijk.
