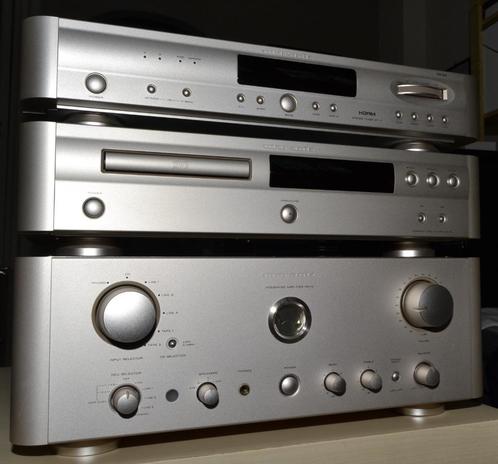

Marantz PM-14, CD-14, ST-17.

Kunnen getest worden.

General
Manufacturer: Marantz
Model: PM-14
Years of manufacture: 1996-2000
Color: gold and black

Type: Analog
Remote control: yes
Dimensions: 458x146x410 mm (housing)
Dimensions: 458x166x464 mm (incl. all protrusions)
Weight: 23kg
List price approx.: 5000,-DM (2550,-€)
Selling price 2000: 3200,-DM to 4000,- DM

Connections
Number of inputs:
5 Line (CD, Tuner, TV, DVD, Tape1, Tape2).

1 CD balanced 1 Phone MM/MC
MainIn

Number of outputs:
PreOut
2 Record out
2 Loudspeaker
2 RC-Bus for remote control of other devices

Technical Data
Continuous power (at distortion factor) 0.01%.
8 Ohm: 138 Watt (DIN)

4 Ohm: 220 Watt (DIN)
Dynamic power
8 Ohm: 148 Watt (IHF)
4 Ohm: 250 Watt (IHF)

Total harmonic distortion: 0.01
Attenuation factor: 150
Frequency response: 5Hz - 60kHz (+0, -1dB)
External voltage spacing: 110dB CD, 90dB Phono MM, 76dB Phono MC
Stereo channel separation: >74dB (1kHz), >66dB (10kHz).
Tone control:
Bass: +-8

Treble: +-8
Loudness: no
High Filter: no
Mute: yes
Direct/Line-Straight: yes
