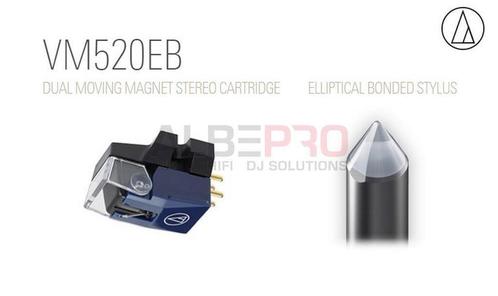

Audio-Technica VM520EB Element

VM520EB direct uit voorraad leverbaar, geen verzendkosten binnen Nederland en België

U kunt dit product eenvoudig bestellen via onze website.DUAL MOVING MAGNET STEREO CARTRIDGE WITH ELLIPTICAL STYLUS

• Elliptical Bonded profile diamond stylus
• VM type dual magnet system
• Para-toroidal coils improve generating efficiency
• Aluminium cantilever
• Centre shield plate between stereo channels
• Durable low resonance polymer housing

PRODUCT FEATURES


• Elliptical diamond stylus follows the groove modulation with greater precision compared to a conical stylus, offering improved frequency and phase responses whilst reducing distortion.
• VM type dual magnet design ensures outstanding channel separation, extended frequency response and superb tracking
• Lightweight aluminium cantilever allows for faithful reading of the record groove
• Centre shield plate enables the effective separation of left and right channels, suppressing electrical crosstalk to below 40dB
• Durable low resonance polymer housing

 VM520EBDUAL MOVING MAGNET STEREO CARTRIDGE
Standard elliptical stylus model equipped with an elliptical bonded stylus. This reduces tracing distortion and allows for more accurate sound reproduction.

• Aluminium cantilever
• Para-toroidal coils improve generating efficiency
• Centre shield plate between the left and right channels reduces crosstalk
• Durable low resonance polymer housing


TypeVM TypeMounting1/2” centres
Frequency Response20 - 23,000Hz
Channel Separation27dB (1kHz)
Output Channel Balance1.5dB (1kHz)
Output Voltage4.0mV (1kHz, 5cm/sec.)
Vertical Tracking Angle23˚
Vertical Tracking Force Range1.8 – 2.2g (2.0g standard)
Stylus ShapeElliptical Bonded
Stylus Size0.3 x 0.7 mil
Stylus ConstructionBonded Round ShankCantileverAluminium Pipe
Coil Impedance2,700Ω (1kHz)
Static Compliance35 x 10-6 cm/dyne
Dynamic Compliance8 x 10-6 cm/dyne (100Hz)
Recommended Load Impedance47,000Ω
Recommended Load Capacitance100 – 200pF
Weight6.4g
Dimensions17.3 (H) x 17.0 (W) x 28.2 (L) mm
Replacement StylusVMN20EB
Accessories
IncludedCartridge installation screws 5mm ×2 and 10mm ×2, Washer ×2, Hexagon nut ×2
