Integrated HiFi Amplifier Line Magnetic LM-219iA
955sinds 13 jul. '25, 11:43
€ 4.500,00
Ophalen
Kenmerken
TypeVersterker
Beschrijving

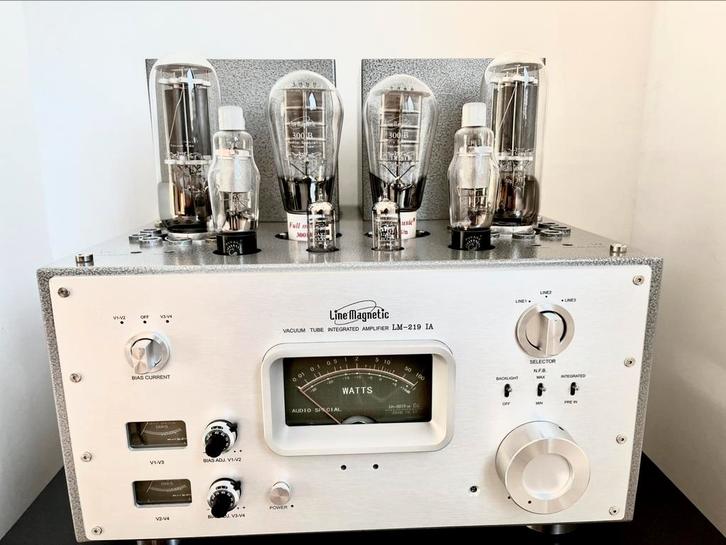

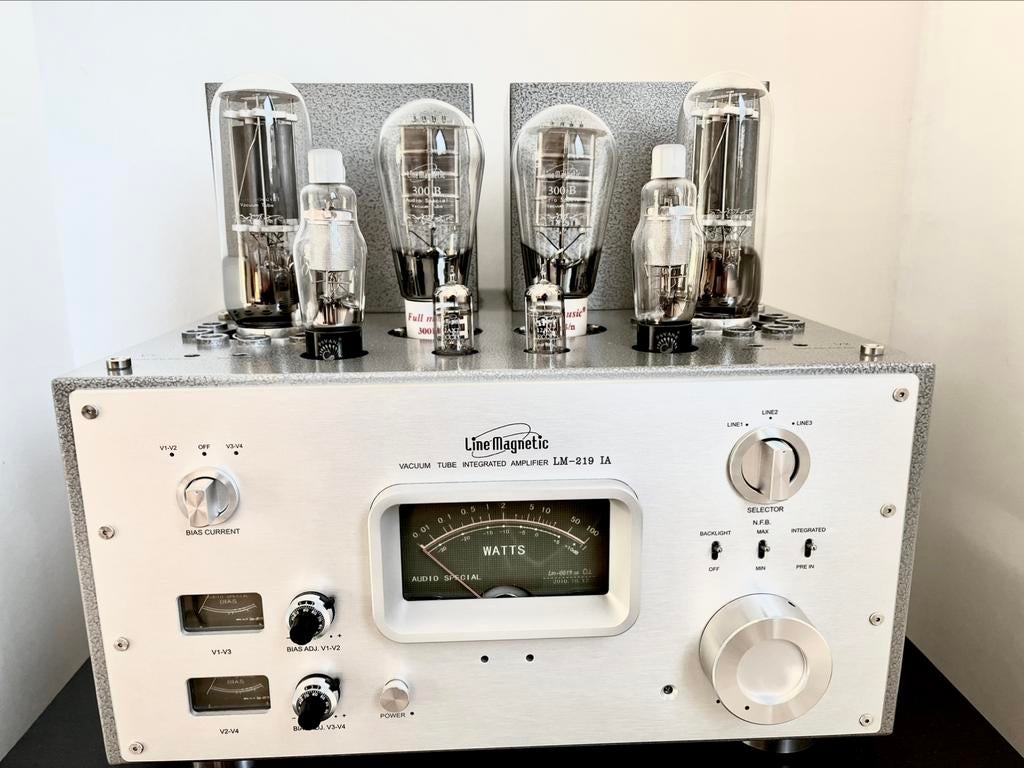

High-end Class A valve amplifier from Line Magnetic, model LM-219iA.
Product features:
Pure Class A , Single Ended design, 22 watts per channel.
All tube integrated with 12AX7 input tubes , 310A and 300B double stage driver tubes and 845 output tubes.
Three pairs of input connectors.
Speaker terminals for 4 , 8 , 16 Ohm.
Two user bias controls and bias meters are located on the front panel, allowing you to monitor and adjust bias with ease.
One output meter with two needles is located on the middle of the frontplate, to allow you to monitor the power output of each channel.
Two pieces of specially designed EI transformers for the powersupply and two EI transformers with wide bandwidth are used in the design.
A Japanese ALPS audio grade volume potentio meter is used.
Standard with remote control.
Hand-made construction with the finest point-to-point wiring.
Soft start and time delay circuit (30 secondes).
·Tubes used: 12AX7X2, 310AX2 (Psvane), 300B X2, 845 X2
·Harmonic Distortion: 1% (1KHZ)
·Signal to noise ratio: 87dB
·Input sensitivity: 230mV
·Output power: 22W (single-ended Class A working state)
·Frequency response of the whole machine: 15HZ～35KHZ (-1.5DB)
·Input impedance: 100kQ
·Output impedance: 4Ω, 8Ω, 16Ω
·Power supply voltage: 220V ± 5% (50Hz)
·Consumption voltage: 400w
·Net weight: 70kg
·Volume (Wx DxH): (430 X 430 X 400 )mm3
Line magnetic LM-219IA Hi-end 300B 845 Vacuum tube single-ended Class A Power Amplifier
Product features:
Pure Class A , Single Ended design, 22 watts per channel.
All tube integrated with 12AX7 input tubes , 310A and 300B double stage driver tubes and 845 output tubes.
Three pairs of input connectors.
Speaker terminals for 4 , 8 , 16 Ohm.
Two user bias controls and bias meters are located on the front panel, allowing you to monitor and adjust bias with ease.
One output meter with two needles is located on the middle of the frontplate, to allow you to monitor the power output of each channel.
Two pieces of specially designed EI transformers for the powersupply and two EI transformers with wide bandwidth are used in the design.
A Japanese ALPS audio grade volume potentio meter is used.
Standard with remote control.
Hand-made construction with the finest point-to-point wiring.
Soft start and time delay circuit (30 secondes).
·Tubes used: 12AX7X2, 310AX2 (Psvane), 300B X2, 845 X2
·Harmonic Distortion: 1% (1KHZ)
·Signal to noise ratio: 87dB
·Input sensitivity: 230mV
·Output power: 22W (single-ended Class A working state)
·Frequency response of the whole machine: 15HZ～35KHZ (-1.5DB)
·Input impedance: 100kQ
·Output impedance: 4Ω, 8Ω, 16Ω
·Power supply voltage: 220V ± 5% (50Hz)
·Consumption voltage: 400w
·Net weight: 70kg
·Volume (Wx DxH): (430 X 430 X 400 )mm3
Line magnetic LM-219IA Hi-end 300B 845 Vacuum tube single-ended Class A Power Amplifier
