Geautomatiseerd magazijnoptimalisatie opslagsysteem KARDEX

SOLD - verkocht

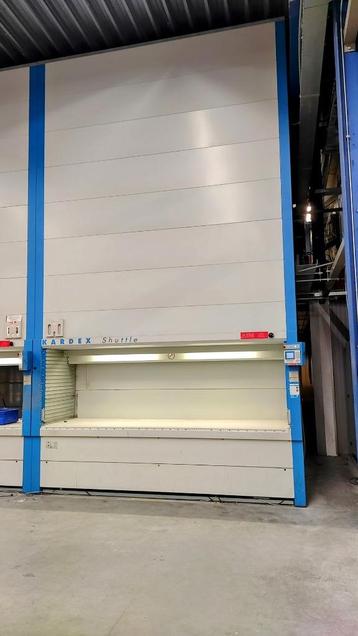

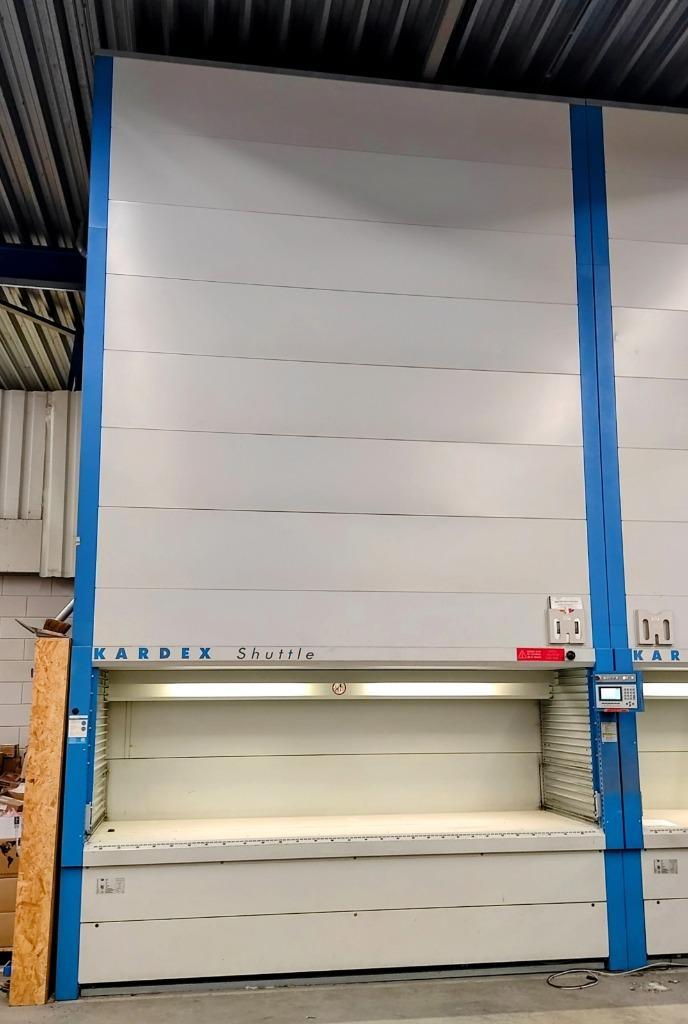

Geautomatiseerd magazijnoptimalisatie opslagsysteem KARDEX Shuttle XP500

System Type : SHUTTLE-XP-500-3050x864
Control : C2000, with B/W OP2000 display
Serial No. : 05001198/001
Year of construction : 2005
Total Load : 2 x 33.550 kg
Load per tray : 210 & 450 kg (evenredig verdeeld)
Tray dimension : 3050 x 864 mm
Number of tray's : 50 pieces (more on request)
Dimensions Shuttle W x D x H : 3380 x 3074 x 5850 mm
(height Kardex is adjustable to available height)
Power : 3/N/PE400 V , 11 A , 50/60 HZ , 4,9 kVA

Deze aanbieding is geldig mits systeem is onverkocht

Technical details each Shuttle:
- Maximum total capacity of the KARDEX Shuttle XP : 2 x 33.500 kg
- Maximum tray capacity : 50 tray's Medium : 210 kg & Medium X : 450 kg each,
evenly distributed , more trays can be ordered.
- Tray dimensions : 3050 x 864 mm
- Machine dimensions : Wide x Depth x Height : 3380 x 3074 x 5850 mm
- Footprint of the system appx: 10,39 m2
- Capacity with 50 trays : appx. 131 m2 , every tray is appx. 2,64 m2
- Electronic volume measuring system in 25 mm screen (grid)
- An access opening with sliding doors to protect people and stored goods
- Control C2000 with graphic display OP-C2000 B/W
- LED anti-dazzle lighting above access point
- Personal Key-code possibility
- Containers locking / security
- Use of toothed-belt for minimum noise
- Use of toothed-belt for fastest order picking
- The working positions can be adjusted individually depending on the body size
- Distances can be realized in steps of 25mm by arranging the support profile.
a prerequisite for high compression storage
- Weight management controls the weight of the tray
- Weight management controls the speed regulation

Prijs : Op aanvraag alleen via e-mail
Prijs : excl. BTW, inclusief transport en montage
Levertijd : uit voorraad
