Geautomatiseerd magazijnoptimalisatie opslagsysteem KARDEX

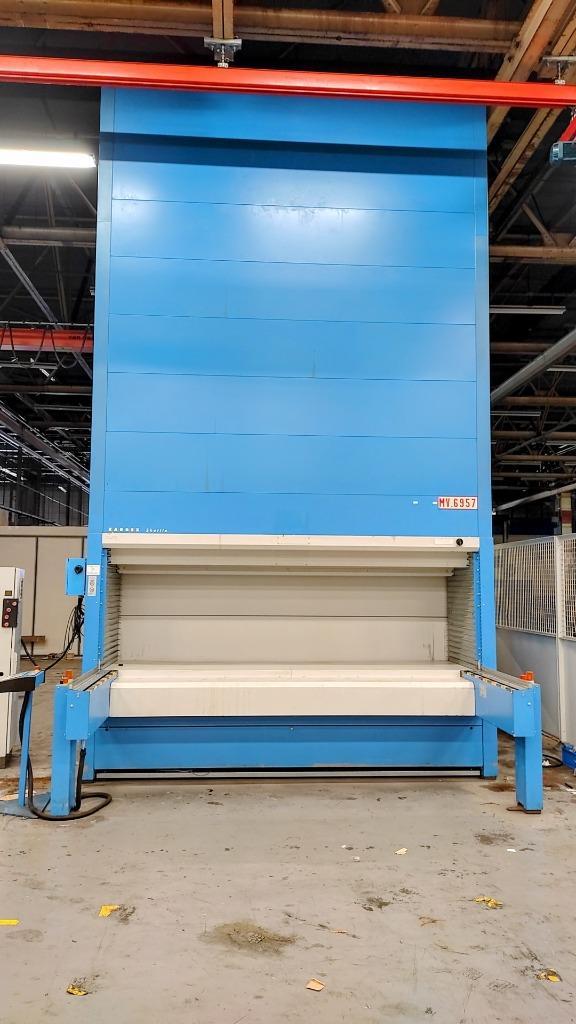

Geautomatiseerd magazijnoptimalisatie opslagsysteem KARDEX Shuttle XP500

System Type : SHUTTLE-XP-500-3050x864
Control : C2000, with B/W OP2000 display
Serial No. : 07006421/001
Year of construction : 2007
Total Load : 2x33.500 kg
Load per tray : 205 kg & 460 kg (evenredig verdeeld)
Tray dimension : 3050 x 864 mm
Number of tray's : 40 pieces (more on request)
Dimensions Shuttle W x D x H : 3380 x 3074 x 5980 mm
(height Kardex is adjustable to available height)
Dimensions Shuttle D with full tray extraction table : 4198 mm
Power : 3/N/PE400 V , 17 A , 50/60 HZ , 8,6 kVA

Deze aanbieding is geldig mits systeem is onverkocht

Technical details each Shuttle:
- Maximum total capacity of the KARDEX Shuttle XP : 2 x 33.500 kg
- Maximum tray capacity : 2 tray's Medium , 205 kg each &
38 tray's Medium X Typ 2 , 460 kg each ,
evenly distributed , more trays can be ordered.
- Tray dimensions : 3050 x 864 mm
- Machine dimensions : Wide x Depth x Height : 3380 x 3074 (4198) x 5980 mm
- Footprint of the system appx: 14,19 m2
- Capacity with 40 trays : appx. 105 m2 , every tray is appx. 2,64 m2
- Electronic volume measuring system in 25 mm screen (grid)
- An access opening with sliding doors to protect people and stored goods
- Control C2000 with graphic display OP-C2000 B/W
- LED anti-dazzle lighting above access point
- Personal Key-code possibility
- Containers locking / security
- Use of toothed-belt for minimum noise
- Use of toothed-belt for fastest order picking
- The working positions can be adjusted individually depending on the body size
- Distances can be realized in steps of 25mm by arranging the support profile.
a prerequisite for high compression storage
- Weight management controls the weight of the tray/Shuttle
- Weight management controls the speed regulation
- Automatic full tray extraction table


Aanbieding aanvraag alleen via e-mail aanvraag met uw bedrijfsgevevens.


Machinehandel De Leeuw BV is gespecialiseerd in gebruikte machines
en toebehoren voor de verspanende industrie en gebruikte paternoster
systemen van onder andere Kardex , Hanel / Haenel , Electrolux , Bertello ,
Megamat , Lista , Denocard en automatische opslag systemen zoals de
Kardex Shuttle XP en XPlus systemen.
