Geautomatiseerd magazijnoptimalisatie opslagsysteem KARDEXZie omschrijving
Geautomatiseerd magazijnoptimalisatie opslagsysteem KARDEX
Zie omschrijving
Ophalen
2230sinds 24 aug. '23, 08:11
Beschrijving

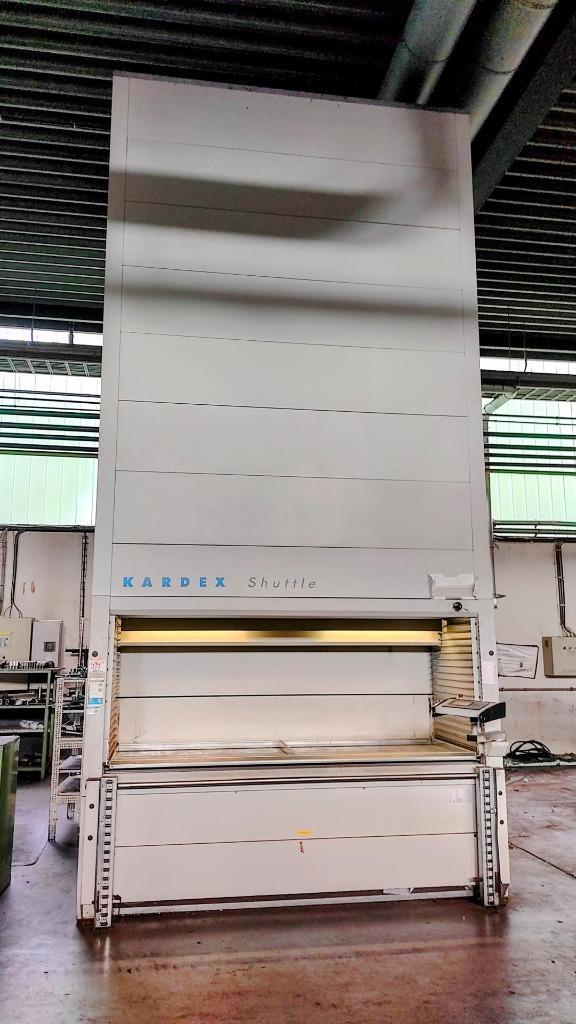

Geautomatiseerd magazijnoptimalisatie opslagsysteem logistica KARDEX Remstar Shuttle XP500
2 pieces on stock
System Type : SHUTTLE-XP-500-2450x864
Control : C2000, with B/W OP2000 display
Serial No. : 04001171/001 and 04001171/002
Year of construction : 2004
Total Load : 2x30.000 kg
Load per tray : 500 kg
Tray dimension : 2450 x 864 mm
Number of tray's : 32 pieces (more on request)
Dimensions Shuttle W x D x H : 2780 x 3074 x 5900 mm
(height Kardex is adjustable to available height)
Power : 3/N/PE400 V , 12 A , 50/60 HZ , 4,9 kVA
Deze aanbieding is geldig mits systeem is onverkocht
Technical details each Shuttle:
- Maximum total capacity of the KARDEX Shuttle XP : 2 x 30.000 kg
- Maximum tray capacity : 32 tray's Strong , 500 kg each ,
evenly distributed , more trays can be ordered.
- Tray dimensions : 2450 x 864 mm
- Machine dimensions : Wide x Depth x Height : 2780 x 3074 x 5900 mm
- Footprint of the system appx: 8,55 m2
- Capacity with 32 trays : appx. 68 m2 , every tray is appx. 2,12 m2
- Electronic volume measuring system in 25 mm screen (grid)
- An access opening with sliding doors to protect people and stored goods
- Control C2000, with B/W OP2000 display
- Anti-dazzle lighting above access point
- Personal Key-code possibility
- Containers locking / security
- Use of toothed-belt for minimum noise
- Use of toothed-belt for fastest order picking
- The working positions can be adjusted individually depending on the body size
- Distances can be realized in steps of 25mm by arranging the support profile.
a prerequisite for high compression storage
- Weight management controls the weight of the tray/Shuttle
- Weight management controls the speed regulation
- Position indicator lamps for indication of the product position
- Manual Hinged Tray Extraction !!
Aanbieding aanvraag alleen via e-mail aanvraag met uw bedrijfsgevevens.
Machinehandel De Leeuw BV is gespecialiseerd in gebruikte machines
en toebehoren voor de verspanende industrie en gebruikte paternoster
systemen van onder andere Kardex , Hanel / Haenel , Electrolux , Bertello ,
Megamat , Lista , Denocard en automatische opslag systemen zoals de
Kardex Shuttle XP en XPlus systemen.
Machinehandel De Leeuw BV
Oordeelsestraat 7 – b
5111 PA Baarle-Nassau
The Netherlands
Tel: +31 (0) 135077466
GSM Antoine: +31 (0) 630516749
E-mail: info @ deleeuw-machinehandel . nl
2 pieces on stock
System Type : SHUTTLE-XP-500-2450x864
Control : C2000, with B/W OP2000 display
Serial No. : 04001171/001 and 04001171/002
Year of construction : 2004
Total Load : 2x30.000 kg
Load per tray : 500 kg
Tray dimension : 2450 x 864 mm
Number of tray's : 32 pieces (more on request)
Dimensions Shuttle W x D x H : 2780 x 3074 x 5900 mm
(height Kardex is adjustable to available height)
Power : 3/N/PE400 V , 12 A , 50/60 HZ , 4,9 kVA
Deze aanbieding is geldig mits systeem is onverkocht
Technical details each Shuttle:
- Maximum total capacity of the KARDEX Shuttle XP : 2 x 30.000 kg
- Maximum tray capacity : 32 tray's Strong , 500 kg each ,
evenly distributed , more trays can be ordered.
- Tray dimensions : 2450 x 864 mm
- Machine dimensions : Wide x Depth x Height : 2780 x 3074 x 5900 mm
- Footprint of the system appx: 8,55 m2
- Capacity with 32 trays : appx. 68 m2 , every tray is appx. 2,12 m2
- Electronic volume measuring system in 25 mm screen (grid)
- An access opening with sliding doors to protect people and stored goods
- Control C2000, with B/W OP2000 display
- Anti-dazzle lighting above access point
- Personal Key-code possibility
- Containers locking / security
- Use of toothed-belt for minimum noise
- Use of toothed-belt for fastest order picking
- The working positions can be adjusted individually depending on the body size
- Distances can be realized in steps of 25mm by arranging the support profile.
a prerequisite for high compression storage
- Weight management controls the weight of the tray/Shuttle
- Weight management controls the speed regulation
- Position indicator lamps for indication of the product position
- Manual Hinged Tray Extraction !!
Aanbieding aanvraag alleen via e-mail aanvraag met uw bedrijfsgevevens.
Machinehandel De Leeuw BV is gespecialiseerd in gebruikte machines
en toebehoren voor de verspanende industrie en gebruikte paternoster
systemen van onder andere Kardex , Hanel / Haenel , Electrolux , Bertello ,
Megamat , Lista , Denocard en automatische opslag systemen zoals de
Kardex Shuttle XP en XPlus systemen.
Machinehandel De Leeuw BV
Oordeelsestraat 7 – b
5111 PA Baarle-Nassau
The Netherlands
Tel: +31 (0) 135077466
GSM Antoine: +31 (0) 630516749
E-mail: info @ deleeuw-machinehandel . nl
