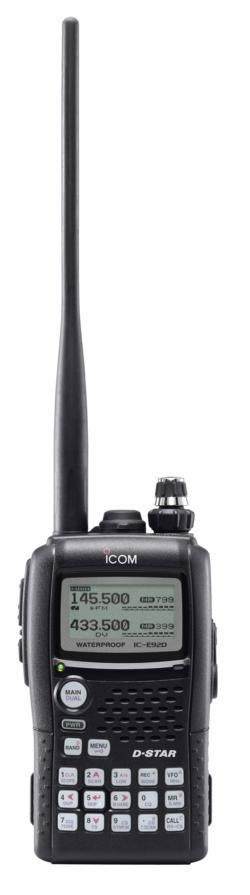

portable complet dans sa boite avec accus sabot se charge antenne clips ceinture comme neuf achat sur place posible Type:
Amateur VHF/UHF transceiver
Frequency range:
TX: 144-146 / 430-440 MHz (Europe)
RX: 0.495-999.99 MHz
Tuning steps:
5 / 6.25 / 8.33 / 9 / 10 / 12.5 / 15 / 20 / 25 / 30 / 50 / 100 / 125 / 200 KHz
Frequency stability:
±2.5 ppm @ -20 to +60°C (-4 to +140°F)
Mode:
TX: FM / NFM and DV (D-Star: GMSK 4.8 kbps voice)
>RX: AM / FM / NFM / WFM and DV (D-Star: GMSK 4.8 kbps voice)
Channels / memory management:
A-band: B-band:
800 regular

400 regular
50 scan edge

50 scan edge
2 call

2 call

Alpha tags
Priority watch
Non-volatile storage
Repeater shift / offset:
±0 to 159.995 MHz in 5 KHz steps
Power supply:
7.4 VDC (Battery pack)
10-16 VDC (External)
Current drain / power consumption:
RX: 38-220 mA
TX: 0.4-2.1 A
Antenna impedance / connector:
50 ohm / SMA
Dimensions (W*H*D):
59*112*34 mm (2.32*4.41*1.34")
Weight:
325 g (10.58 oz), with BP-256 and antenna
Other features:
CTCSS/PL and DTCS with tone scan. Band scope. 1750 Hz tone burst.
DTMF. Submersible IPX7 (1 meter/30 minutes). Twin RX
RECEIVER SECTION
Receiver system:
Double conversion superheterodyne (AM/FM/NFM/DV)
1st IF: 61.65 MHz (A-band), 46.35 MHz (B-band)
2nd IF: 450 KHz
Triple conversion superheterodyne (WFM)
1st IF: 59.25 MHz
2nd IF: 13.35 MHz
3rd IF: 1.95 MHz
Sensitivity:
AM (10 dB S/N)
0.495-5 MHz: 1.3 uV
5-30 MHz: 0.56 uV
118-137 MHz: 0.5 uV
222-247 MHz: 0.79 uV
247-330 MHz: 1 uV
FM (12 dB SINAD)
1.625-30 MHz: 0.4 uV
118-174 MHz: 0.14 uV
174-350 MHz: 0.32 uV
350-470 MHz: 0.16 uV
470-600 MHz: 0.32 uV
600-1000 MHz: 0.45 uV
WFM (12 dB SINAD)
76-108 MHz: 1 uV
175-222 MHz: 1.8 uV
470-770 MHz: 2.5 uV
DV (4.8 kbps, BER 1%)
VHF ham band: 0.22 uV
UHF ham band: 0.22 uV
Squelch sensitivity:
Squelch matrix
Noise figure:
Selectivity:
AM/FM
50 dB
NFM/DV
45 dB
WFM
300 KHz (-3 dB)
700 KHz (-20 dB)
Image rejection:
VHF: >60 dB
UHF: >50 dB
AF output power/speaker:
200 mW at 10% distortion / 8 ohm
External speaker connector:
TRS "Minijack" (3.5 mm), 8 ohm
TRANSMITTER SECTION
RF output power:

HighMid1Mid2Low
2 m:
5 W
2.5 W
500 mW
100 mW
70 cm:
5 W
2.5 W
500 mW
100 mW
Modulation system:
FM: Variable reactance frequency modulation
DV: GMSK reactance frequency modulation
Max FM deviation (Factory set):
FM:±5 KHz
NFM:±2.5 KHz
Spurious emissions:
Better than -13 dBm (Low)
Microphone impedance / connector:
2 Kohm / ?-pin
Microphone input level:
? mV
MISCELLANEOUS
Manufactured:
Japan, 2007-201x (Discontinued)
Additional info:
New price 2008 in Sweden: SEK 6495:-
Related documents:
User manual (15.7 MB)
Service manual (8.3 MB)
Modifications and fixes:
Reviews:
Options / Accessories:
AD-92SMA
BC-167D/S
BC-177
BP-256
BP-257
CP-12L
CP-19R
HM-75A
HM-131
HM-153
HM-166
HM-174
HM-175GPS
HS-85
LC-168
MB-111
OPC-254L
OPC-474
OPC-1797
OPC-1799
RS-92
SP-13
Antenna connector adapter (SMA-to-BNC)
Wall charger
Rapid charger
7.4 V, 1620 mAh Li-Ion battery pack
2*R6/AA dry cell battery case
Cigarette lighter cable
Cigarette lighter cable with noise filter
Speaker-microphone with remote functions
Speaker-microphone
Hands-free headset
Hands-free headset
Speaker-microphone
Speaker-microphone with GPS receiver
Headset
Carrying case
Belt clip
DC power cable
Cloning cable (Radio-to-radio)
Plug adapter cable
RS232C data cable
Remote control/memory management software
Earphone
