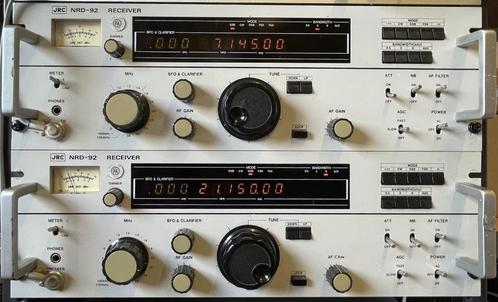

2 Récepteurs de traffic JRC NRD-92

NRD-92 Specifications

Frequency Range ..... 90 - 29999.99 kHz
Preset Frequencies .. 500, 2182 kHz
IF1: 70.455 MHz
IF2: 455 kHz
Power ............……….100/110/115/220/230/240 VAC 50/60 Hz
Antenna Impedance ...50 ohm
Selectivity (-6dB) …….6.0 kHz
3.0 kHz
0.5 kHz0.3 kHz [Optional]
Sensitivity ......………. 2µV SSB 1.6-30 MHz (10 dB S+N/N)
Stability .........……….. ± 5 Hz for any 15 minutes
IF Rejection ......…….. > 70 dB
Image Rejection ..…... > 60 dB
Other Spurious ...……. > 60 dB
Audio Output ......……. 1 Watts at 8 Ohms
Standard Steps ....….. 10 Hz, 100 Hz, 1 kHz
5 kHz, 9 kHz, 10 kHz or 100 kHz.
RF Attenuator .....……. 20 dB
BFO Range ........……. ± 2.0 kHz
Clarifier Range .……... ± 120 Hz
Audio Output .....…….. 1 watt internal speaker
1 watt external speaker 8 ohm
10 mW or more headphone 600 ohm
Line Output ....……….. ± 10 dB (600 ohm balanced)
Circuit Type ......……… Up Conversion Dual Superheterodyne
Temperature .......…… -10° to 50°C
Dimensions ......……...480x150x290 mm
Weight ..........………...10.5 kg

What You See Is What You Get !
100% Fonctionnel
Options: 10MHz Ext Ref - LSB - USB

Examen, démo et essai à volonté sur place
Prix : 700 € each - 1200 € pour les deux
Enlèvement et payement à Braine le Chateau
