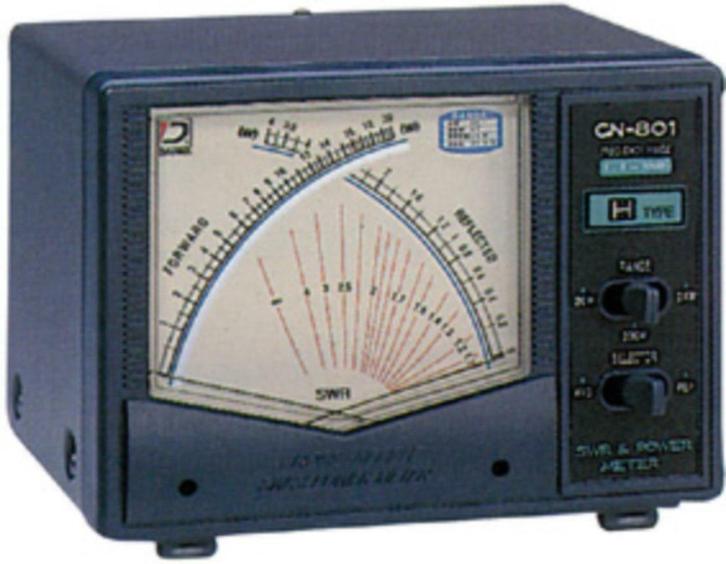

DAIWA CN-801 HP, zeer betrouwbare SWR meter, nieuw


SWR/Power Meter, Frequency Range 1.8MHz - 200MHz, Power Range 20W/200W/2KW.
...
Long description: The CN-801 Series is high quality instrument with unique features which make tendious measurement of SWR and Power during antenna tests, matching and tuning of transmitters a very easy task. SWR and Power indicators are installed in one meter unit. One scale will indicate forward power. Another scale reflected power and SWR is indicated at the crossing point of the 2 needles. This unique feature makes it possible to read forward power, reflected power and SWR all at the same time. CN-801HP can also measure P.E.P Peak Power in SSB operation

SPECIFICATION:
Frequency: 1.8 - 200MHz
Power range: Forward 20/200/2KW
Tolerance: +/- 10% at full scale
SWR measurement: 1:1 - 1:00
SWR detection sensitivity: 5W min
Input/Output impedance: 50 ohms
Input/Output connectors: M type(so-239)
DC power supply: DC13.8V(70mA)
Dimensions and weight: 157(W) x 117(H) X 117(D)mm
