Kenmerken
Conditie
Nieuw
Type
Accessoires
Beschrijving

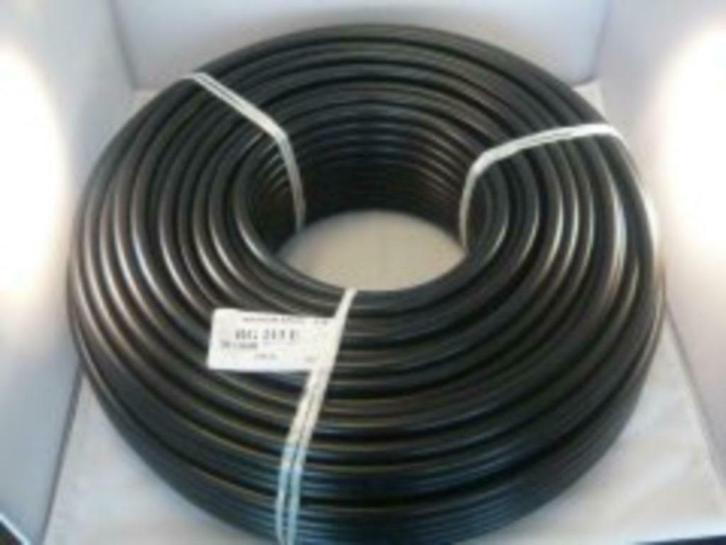

Nieuwe Coax M17/74 RG-213 C-17 Mill / m ook op rol te koop 100 m of 180 m, deze coax is van hoge kwaliteit, iets duurder dan de /U
Strand Size0.0296Conductor Stranding7/.0296Dielectric (in)0.285Nom. O.D. (in)0.4050Nom. Dia. of Cond.0.0888Nom. Cap. (pF/ft)30.8Approx LBS/MFT111.00Shield Material33 AWG 95% Bare Copper Braid ShieldCond. MaterialBare CopperDielectric MaterialPolyethylene (PE)Jacket MaterialPolyvinylchloride (PVC)ShieldOverall Braid ShieldMax. Temp85°CMin. Temp-40°CNom. Imp.50Vel. of Prop.66Mil-SpecM17Mil-Spec #M17/74-RG213CommentsUse M17/189-00001 LS/LT JacketM17 Test Frequency.05-1GHz sweptVoltage5000DescriptionM17/74-RG213 Coaxial CableOur M17/74-RG213 cable is part of our Wire & Cable line of Coaxial Cables. M17/74-RG213 is made up of a 7/.0296 bare copper conductor with a polyethylene (PE) dielectric, polyvinylchloride (PVC) jacket, and an overall braid shield of 33 AWG 95% bare copper braid shield. Weighing approximately 111.00 lbs/MFT, these cables are rated for an operating voltage of 5000 volts and have a temperature range of -40°C to 85°C. M17/74-RG213 has an M17 Test Frequency of .05-1GHz swept and is used for high-frequency signal transmission.
Strand Size0.0296Conductor Stranding7/.0296Dielectric (in)0.285Nom. O.D. (in)0.4050Nom. Dia. of Cond.0.0888Nom. Cap. (pF/ft)30.8Approx LBS/MFT111.00Shield Material33 AWG 95% Bare Copper Braid ShieldCond. MaterialBare CopperDielectric MaterialPolyethylene (PE)Jacket MaterialPolyvinylchloride (PVC)ShieldOverall Braid ShieldMax. Temp85°CMin. Temp-40°CNom. Imp.50Vel. of Prop.66Mil-SpecM17Mil-Spec #M17/74-RG213CommentsUse M17/189-00001 LS/LT JacketM17 Test Frequency.05-1GHz sweptVoltage5000DescriptionM17/74-RG213 Coaxial CableOur M17/74-RG213 cable is part of our Wire & Cable line of Coaxial Cables. M17/74-RG213 is made up of a 7/.0296 bare copper conductor with a polyethylene (PE) dielectric, polyvinylchloride (PVC) jacket, and an overall braid shield of 33 AWG 95% bare copper braid shield. Weighing approximately 111.00 lbs/MFT, these cables are rated for an operating voltage of 5000 volts and have a temperature range of -40°C to 85°C. M17/74-RG213 has an M17 Test Frequency of .05-1GHz swept and is used for high-frequency signal transmission.
...
...
...
...
...
...
...
...
...
...
...
...
